AQUAS Sh AQUAS Indulge Touch Flex Smart 9.5KW Matte Black Electric Shower

AQUAS Indulge Touch Flex Smart 9.5KW Matte Black Electric Shower – A000396

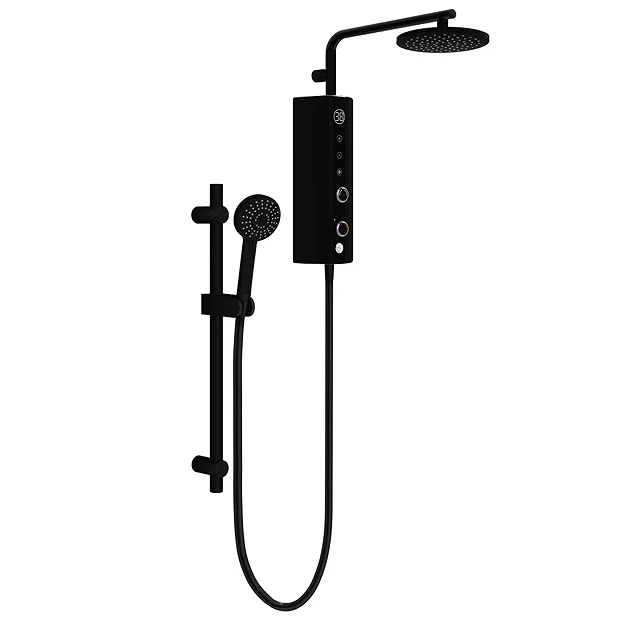

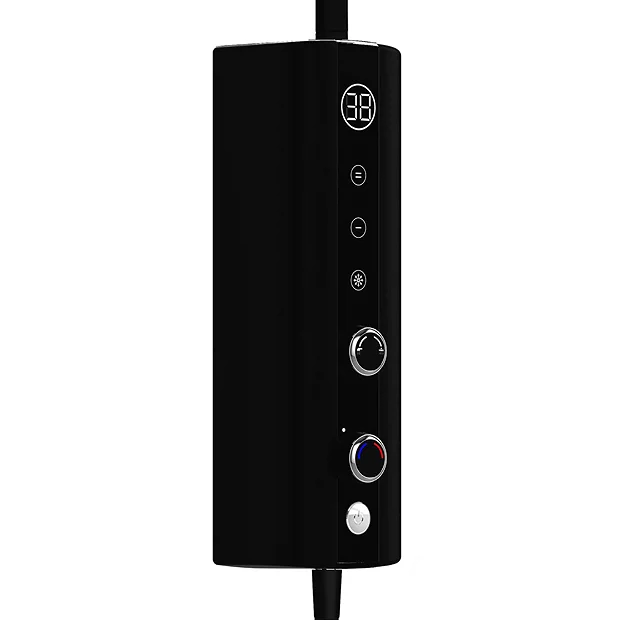

Enjoy an extra vigorous shower and choose from three spray options with the AQUAS Indulge Touch Flex Smart Shower. This matt black 9.5kw electric shower comes with a powerful handset on a flexible hose, as well as a wide overhead shower. Operate one or both of the options via the elegant control panel featuring illuminated touch sensors alongside a digital temperature display. The shower’s superior sensor technology optimises pressure for a luxurious experience. Future focused AQUAS showers help you reduce your energy consumption too, as they come with an eco setting for the milder seasons.

Product Details

• Range: INDULGE Touch Flex
• Name: Indulge Touch Flex Smart
• Colour: Matte Black
• Includes Handshower, overhead shower and slidebar
• Distance rail bracket adjustable
• Smooth black hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Shower arm 400mm with free fixation
• Spray force – increased spray force for sensational showering experience
• Zero hole – fullcover spray pattern
• Power Rating: 9.5kw
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant

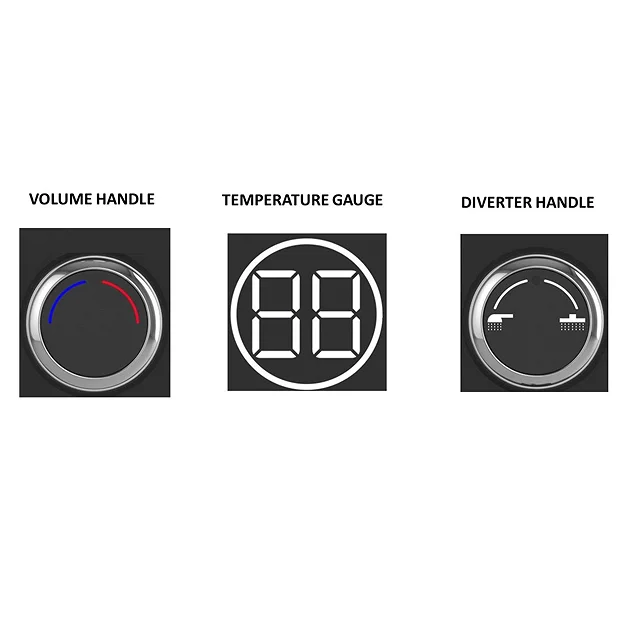

• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Three-way ceramic divertor to switch between Overhead and Handshower
• Shower Fittings:
• Integrated rail in electric shower 600mm with free fixation and front load slider
• Distance between rail brackets adjustable
• all chrome unless otherwise indicated
• Ceramic diverter

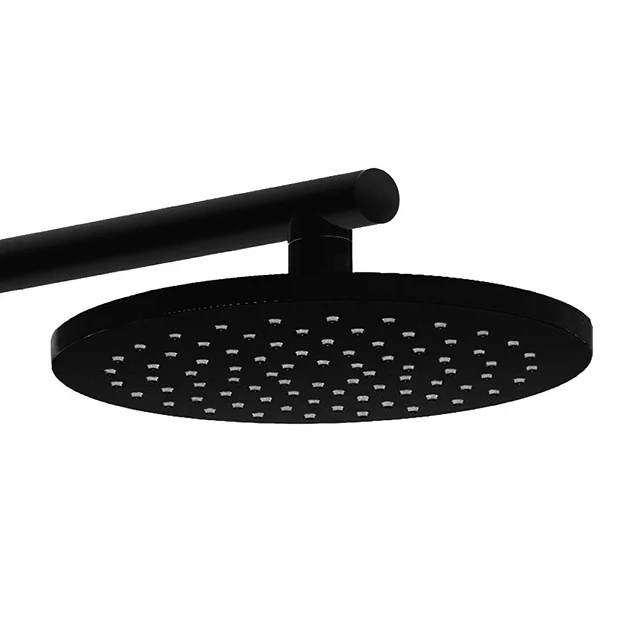

• Overhead shower 200mm with air technology
• Showerarm 300mm

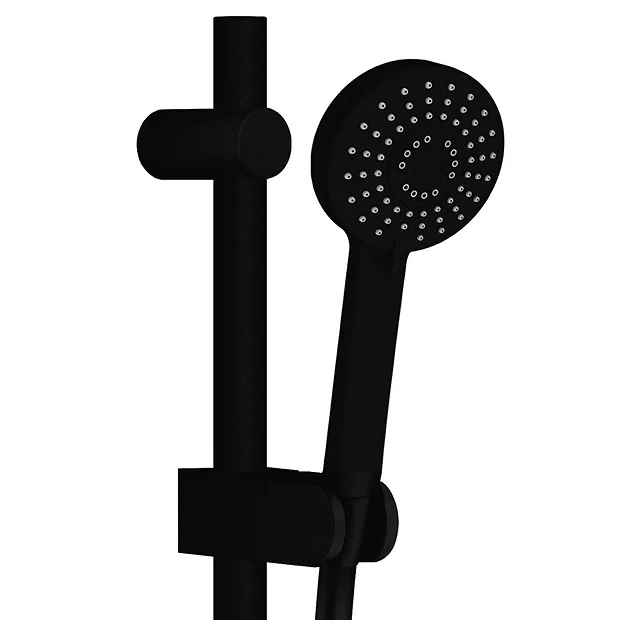

• Handshower 100mm diameter, 3 spray pattern: rain, massage, mix air technology
• Rub clean nozzles
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Approvals: BEAB, CE; ROHS
• Safety:
• Thermal protection: Overheating indication if temperature exceeds 47°C –  automatic reduction of power mode
• Low pressure sensor – automatic reduction of power .
• If flow drops immediately – shower will reduce power mode to lower level
• Outlet temperature sensor reports back to CPU temperature and would reduce power mode
• Cold start technology – when closing the shower, the temperature display will countdown 6 seconds to final closure of the water. Cold water keeps running during this period to cool down heating coil and prevent scalding in case of an immediate restart
• ELECTRICITY LEAKAGE – SAFETY FEATURE
• If the event of any electrical leakage above 15 M/ Amps , the heater will automatically close down for maximum safety

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Additional images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
