Arezzo Brushed Brass Round Shower System W. Diverter, Fixed Head + 4 Body Jets (Oval Backplate)

Arezzo Brushed Brass Round Shower System with Diverter, 200mm Wall Mounted Fixed Shower Head + 4 Body Jets (Oval Backplate)

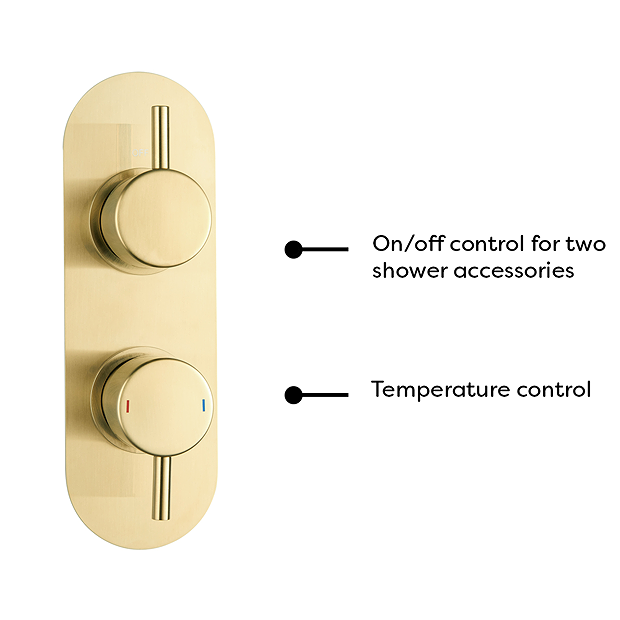

The on-trend Arezzo brushed brass round range brings substantial elegance to the modern bathroom. Package includes a concealed thermostatic shower valve with diverter, fixed shower head and 4 round body jets. The shower valve offers thermostatic showering via two easy-to-operate controls for temperature and flow, integrated diverter switches the water between two shower accessories (overhead shower head or body jets). The ideal solution for multi-option showering. The solid brass valve body comes with a easy to clean contemporary slim oval faceplate.

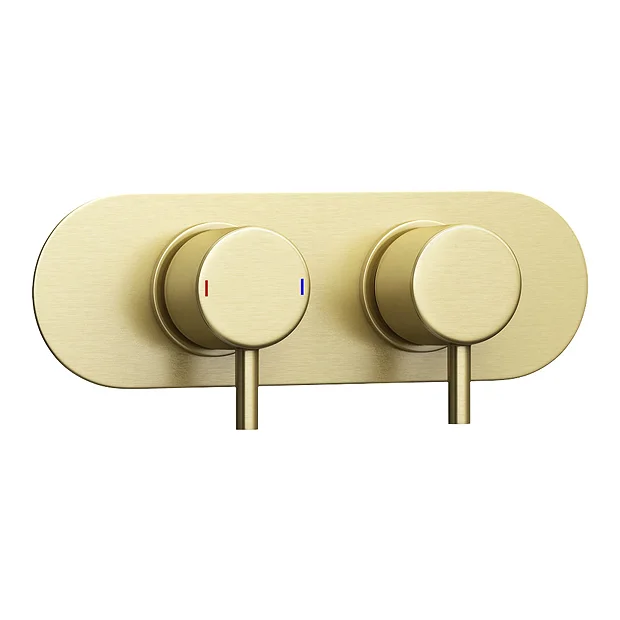

Shower Valve Details

• Height: 215mm
• Width: 70mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Oval Backplate
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 2 Outlets
• Built-In Diverter
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

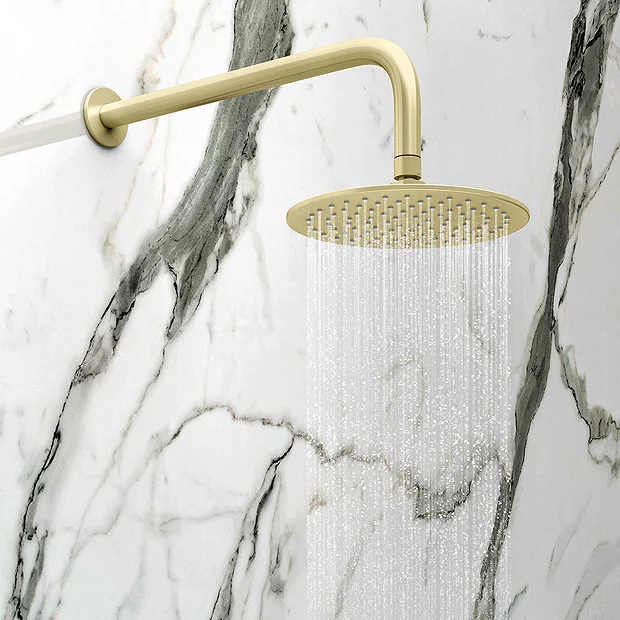

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 2 Year Guarantee


Body Jet Details

• Overall Size: D55 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Brushed Brass
• Material: Brass
• Supplied with swivel joint

*Installation requires rear access behind the wall.

Shower valve Guarantee 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

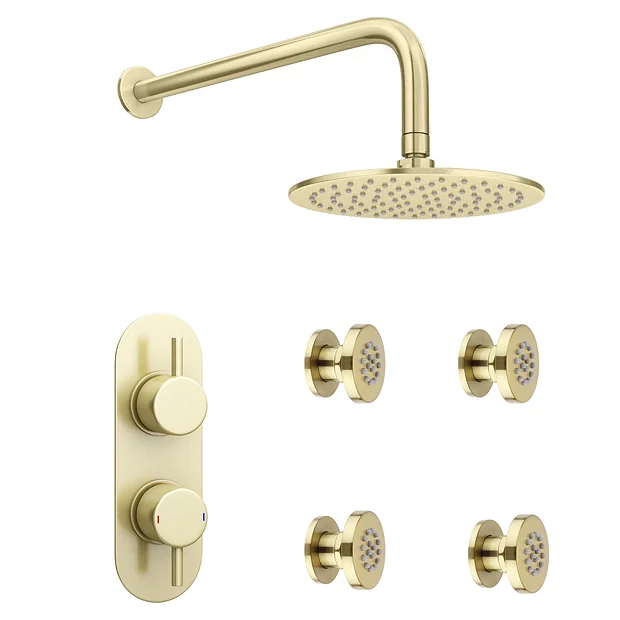

Comprises

(1) Twin Round Handles Concealed Shower Valve w. Diverter + Oval Backplate
(1) 200mm Brushed Brass  Ultra Thin Round Head
(1) Brushed Brass Round Shower Arm
(4) Arezzo Modern Slim Round Body Jet – Brushed Brass

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
