Arezzo Chrome Industrial Style Shower System With Dual Concealed Valve + Fixed Head

Arezzo Chrome Industrial Style Shower System with Dual Concealed Valve + 200mm Fixed Head

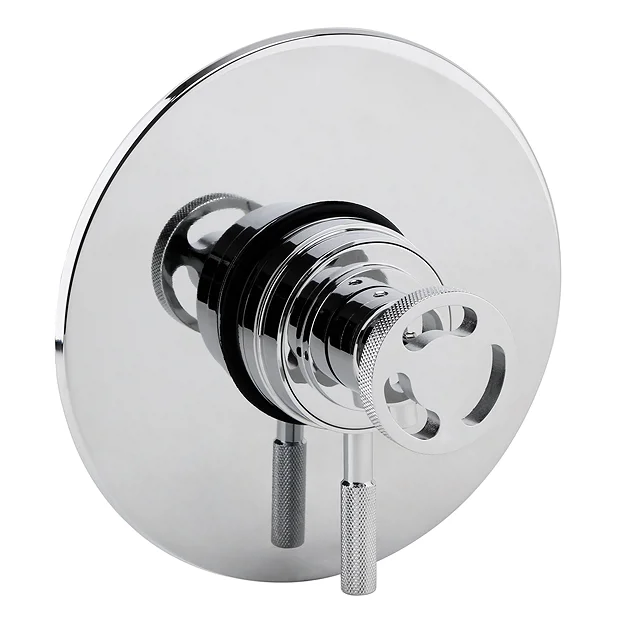

This Arezzo polished chrome industrial-style dual concealed shower valve with round back plate features a stripped-down aesthetic with round knurled textured tap heads, perfect for creating an eye catching industrial look in your bathroom. Featuring easy to operate controls – the front control adjusts the temperature and back lever control turns the water on and off. Supplied with matching wall mounted chrome round fixed shower head with swivel joint and arm, this shower valve has been designed for concealed arrangement and has been plated in chrome which is highly resistant to corrosion.

Shower Valve Details

• Back Plate Diameter: 185mm
• Projection: 152mm
• Centres: 150mm
• Outlet: 18 mm (3/4″ BSP)
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Type: Dual Concealed Shower Valve
• Valve Handles: Round
• Thermostatically controlled
• Wall Mounted
• Round Back Plate
• Water Pressure: 0.5 bar to 5 bar
• Industrial Style Detailing

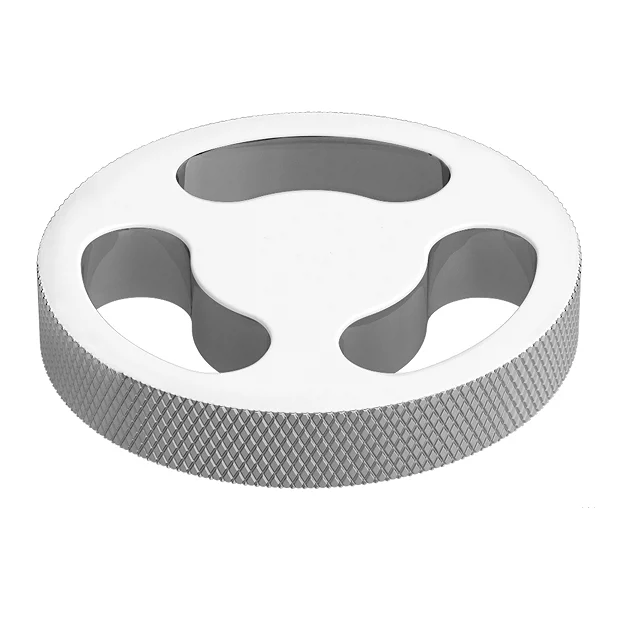

• Circular handles with a tactile knurled grips
• Easy to operate controls
• For use with 1 Outlet
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.2 L/min
• 1 bar – 10.4 L/min
• 2 bar – 14.7 L/min
• 3 bar – 18.4 L/min
• 4 bar – 20.7 L/min
• 5 bar – 23.3 L/min

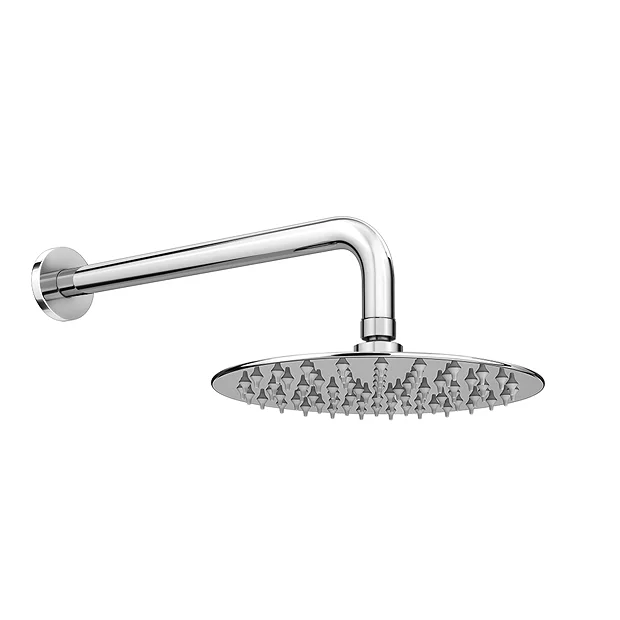

Shower Head + Arm Details

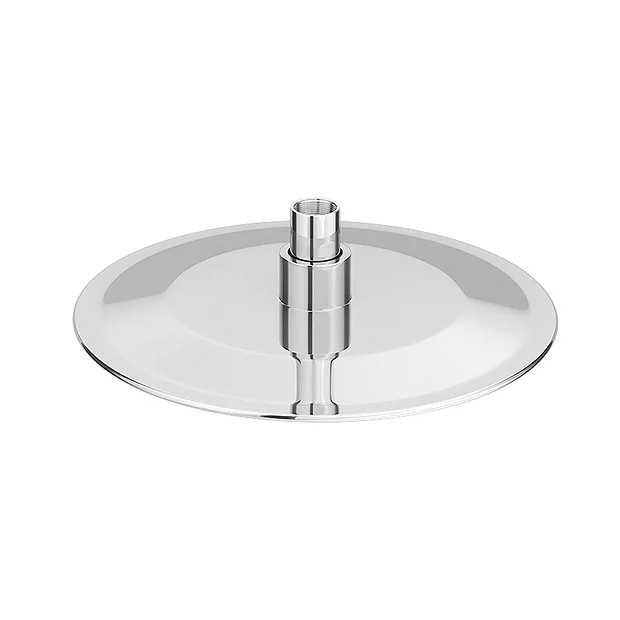

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, chrome finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Round Dual Concealed Shower Valve
(1) 200mm Ultra Thin Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
