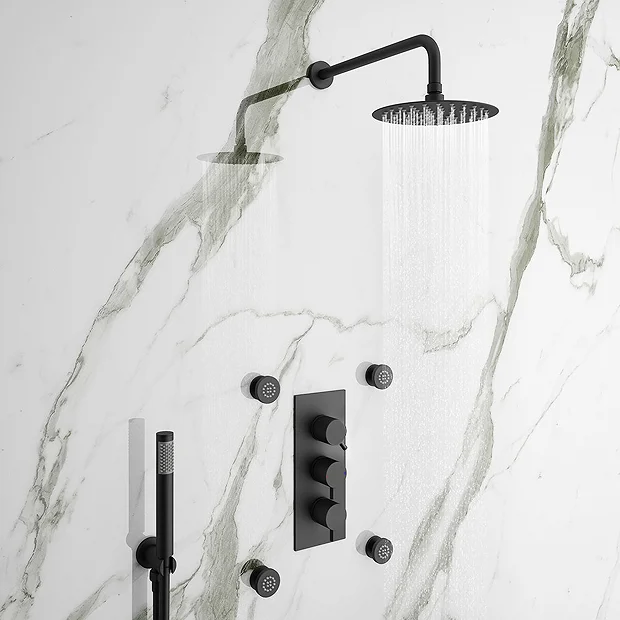

Arezzo Matt Black Round Concealed Triple Shower Valve With Diverter, Handset, Fixed Shower Head + 4 Body Jets

Arezzo Matt Black Round Concealed Triple Shower Valve with Diverter, Handset, Fixed Shower Head + 4 Body Jets

The on-trend Arezzo matt black round range brings substantial elegance to the modern bathroom. Package includes a concealed triple shower valve with integrated diverter, handset, fixed overhead shower head and 4 round body jets. The stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls, operates two shower accessories separately or simultaneously and diverts to a third option. The solid brass construction makes the valve durable and quick to clean thanks to the smooth finish. The ideal solution for multi-option showering.

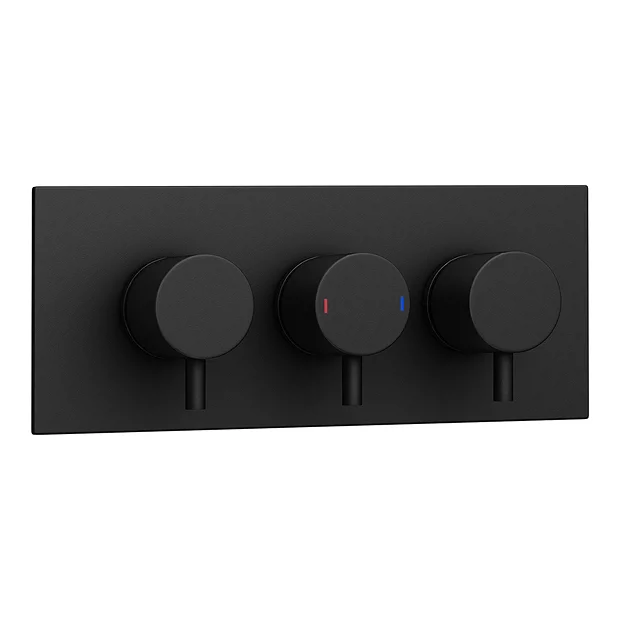

Shower Valve Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Matt Black
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Round
• Outlets: 3
• Rectangular Faceplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Flow Rates:
• 0.5 bar – 7.8 L/M
• 1 bar – 11.1 L/M
• 2 bar – 16 L/M
• 3 bar – 19.5 L/M
• 4 bar – 22.8 L/M
• 5 bar – 25.5 L/M

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Overhead Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included

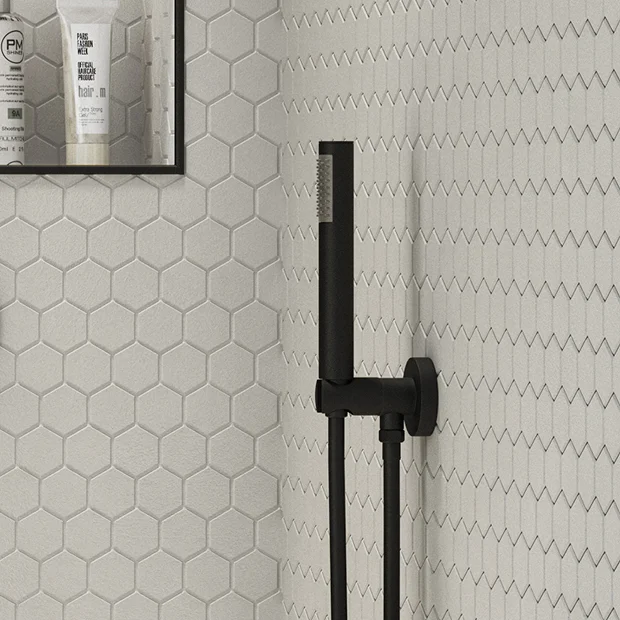

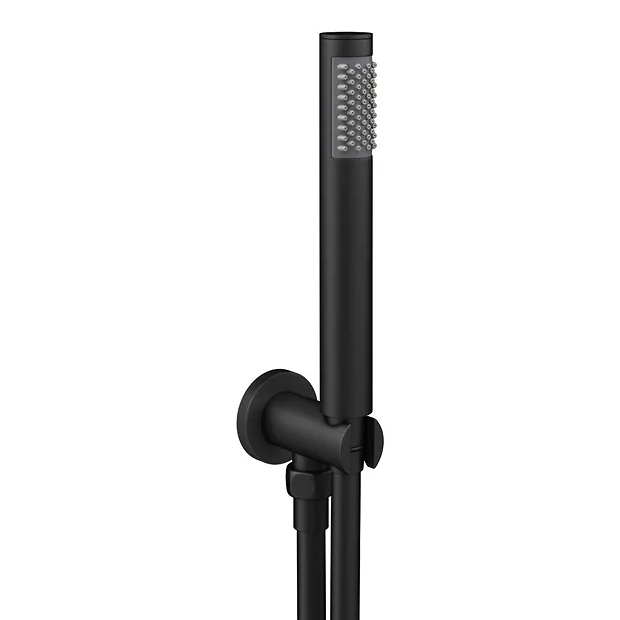

Shower Handset Details

• Depth: 67mm
• Height: 210mm
• Width: 50mm
• Colour/Finish: Matt Black
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Eye-catching, matt black finish
• 1.5m Shower Hose – Black PVC
• Wall mounted
• Outlet Elbow with Parking Bracket – Brass / Matt Black
• Handset – ABS plastic / Matt Black
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

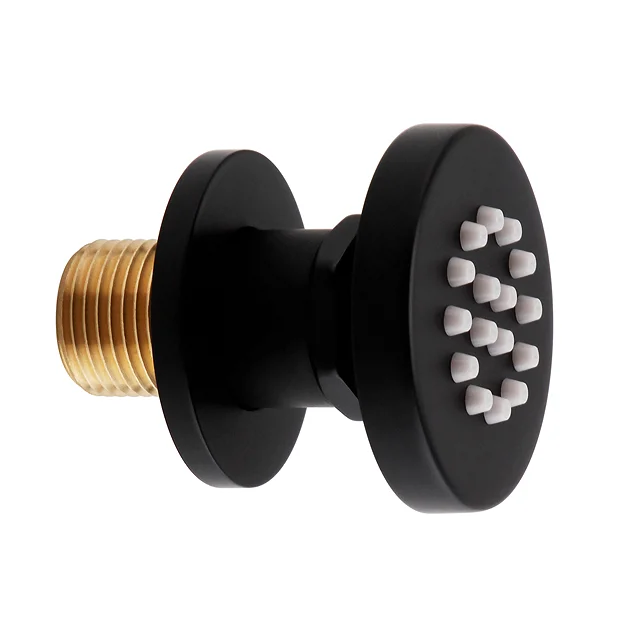

Body Jet Details

• Overall Size: D55 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Matt Black
• Material: Brass
• Wall mounted
• Supplied with swivel joint

*Installation requires rear access behind the wall.

All measurements are approximate

Product images are for illustration purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges, 2 year on coloured finish)

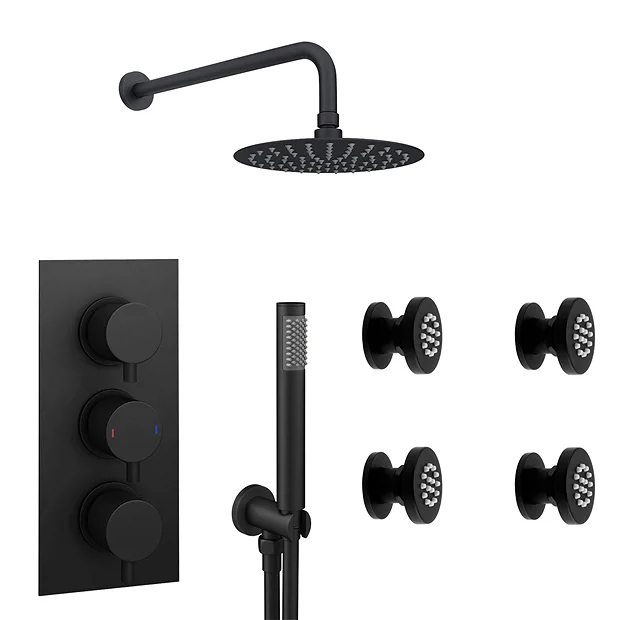

Comprises

(1) Arezzo Round Triple Concealed Thermostatic Shower Valve with Diverter  – Matt Black (3 Outlet)
(1) 200mm Matt Black Ultra Thin Round Head
(1) Matt Black Round Shower Arm
(1) Matt Black Round Outlet Elbow with Parking Bracket, Flex & Handset
(4) Arezzo Modern Slim Round Body Jet – Matt Black

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
