Cruze Bathroom Cruze Concealed Modern Shower Package With Valve + Fixed Round Head

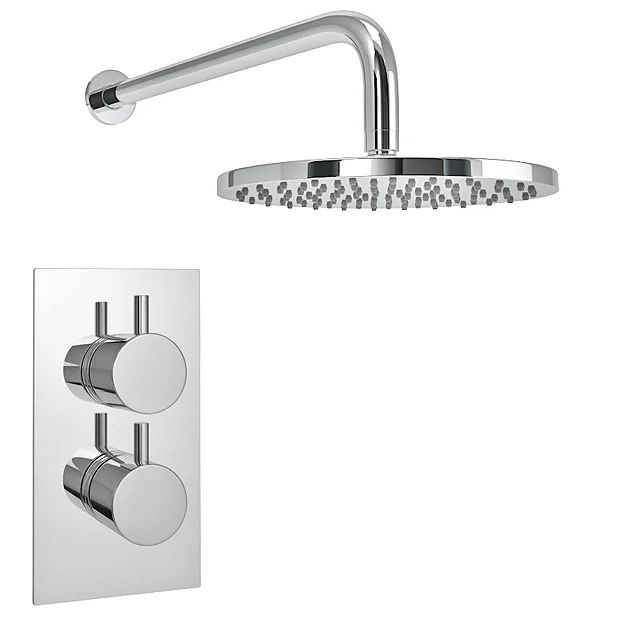

Cruze Concealed Shower Valve with Wall Mounted Fixed Round Head – Chrome

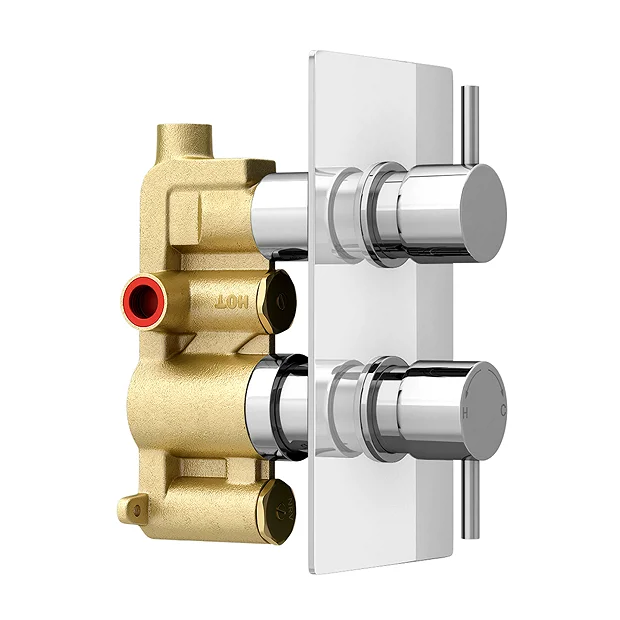

The Cruze Concealed Modern Shower Package with Valve makes a handsome accompaniment to a modern bathroom suite. This concealed shower valve features a rectangular faceplate with two easy to operate round handles to adjust the water temperature and flow to exactly how you like them. You can even fit the faceplate vertically or horizontally depending on your preferences. A chrome plated finish gives this thermostatically controlled shower a gleaming effect – and it’s simple to clean with just a quick wipe. The overhead fixed shower head is adjustable and comes with a swivel joint and arm for straightforward installation.

Product Details

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Thermostatically controlled
• Rectangular Faceplate
• Adjustable Round shower head complete with shower arm
• Shower head chrome plated plastic, not metal.
• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Shower valve dimensions: H215 x W120mm

• Shower valve can be fitted vertically or horizontally
• Water Pressure: 0.5 bar min to 3 bar max

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Pictures for illustrative purposes only.

Installation of the arm requires rear access behind the wall.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

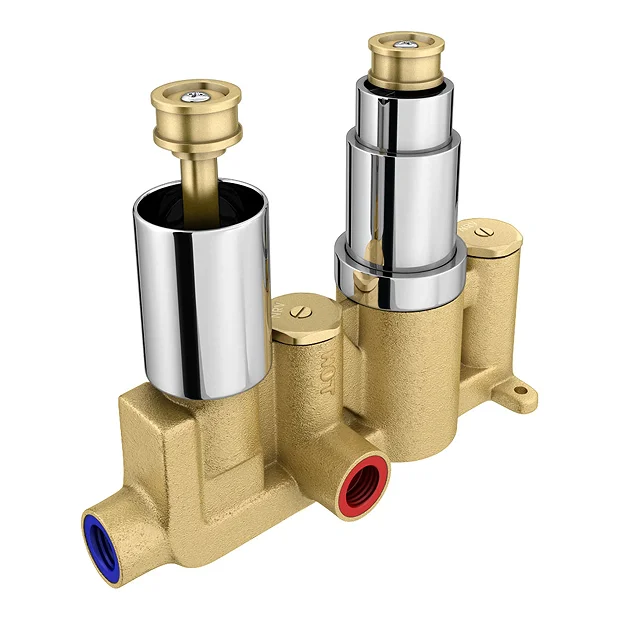

(1) Twin Round Concealed Shower Valve
(1) 200mm Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
