Cruze Bathroom Cruze LED Triple Thermostatic Valve With Round Shower Head + Handset

Cruze LED Triple Thermostatic Valve with Round Shower Head + Handset

The modern Cruze triple Concealed Thermostatic Shower Valve package offers thermostatic showering via three easy-to-operate controls, this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously. Supplied with a round LED fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & pencil handset.

The Cruze round LED chrome finish shower head with swivel ball joint, lights up in three different colours dependent on the temperature of the water. Manufactured from durable corrosion resistance chrome plated plastic. No batteries are needed as the LED shower head is self-powered by the force of running water.

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Thermostatically controlled
• Valve Handles: Round
• Rectangular Faceplate
• Style: Modern
• Operates two points separately or simultaneously
• Can be fitted vertically or horizontally
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

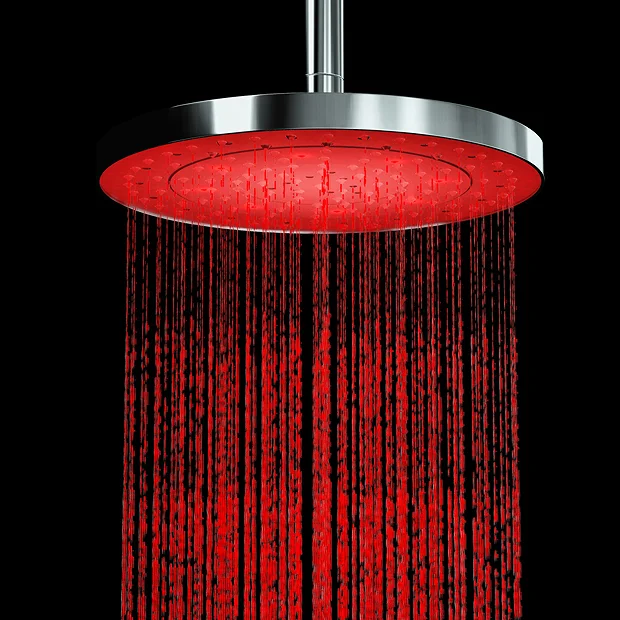

LED Shower Head Details

• Diameter: 200mm
• Three LED Colours (Red, Blue & Green)
• Colour/Finish: Polished Chrome
• Material: ABS chrome material, excellent corrosion resistance, durable
• Style: Contemporary
• Type: Rain Shower
• Shape: Round
• No batteries required, water powered
• Quiet in operation
• Minimum pressure required 0.5 bar
• LED – colour changes dependent on temperature
• (36-45°C) – LED will be red
• (26-35°C) – LED will be blue
• (<25°C) – LED will be green
• when water temperature is above 46°C red and blue colour will flash immediately and simultaneously, which warns you should be careful.
• Shower arm length: 345mm
• Swivel ball joint
• Supplied with wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

Handset Details

• Product Type: Round Outlet Elbow with Parking Bracket, Flex & Handset
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex: Brass / Chrome plated
• Outlet Elbow with Parking Bracket: Brass / Chrome plated
• Rectangular handset: ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Round handset holder

Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

LED Lighting 1 Year Guarantee

Comprises

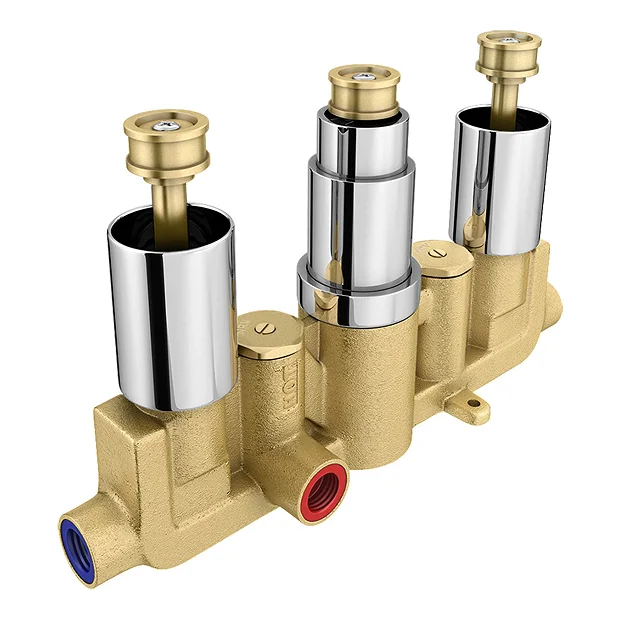

(1) Cruze Triple Round Concealed Thermostatic Shower Valve – Chrome
(1) Cruze 200mm Round LED Chrome Shower Head with Wall Mounted Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Standard Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
