Milan Bathroom Milan Shower Bath + Concealed 1 Outlet Shower Pack (1700 L Shaped With Screen + Panel)

Milan Shower Bath + 1 Outlet Concealed Thermostatic Shower Package (1700mm L Shaped with Screen + Panel)

The Milan shower bath with concealed thermostatic Shower package, features a stylish overhead, rainfall type ultra thin square shower head.

Modern shower baths which allow showering and bathing space in the bathroom. This 1700mm shower bath comes with a hinged bath screen and matching front panel manufactured from high quality gloss white acrylic.

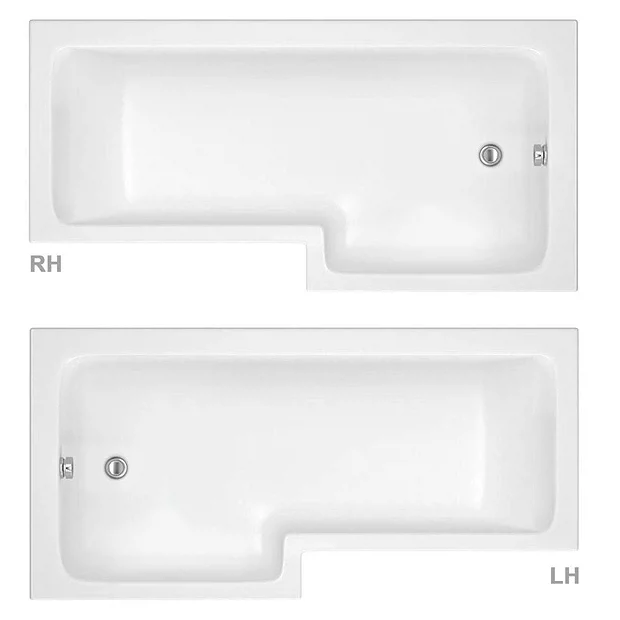

All of our shower baths are available in left or right hand configuration, and are the new ideal solution for families looking to add a little luxury, whilst keeping an eye on space.

Please note, optional bath end panel (WBS301) sold separately.

Bath Details

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Comes with metal bath legs
• Supplied with quality acrylic front panel
• Guarantee: 5 Year

Bath Screen Details

• Height: 1400mm
• Width: 805mm
• Polished chrome
• Reversible
• Hinged Screen with fixed return
• Metal caps
• 6mm toughened safety glass.
• Suitable for use with square shower baths.
• Guarantee: 5 Year

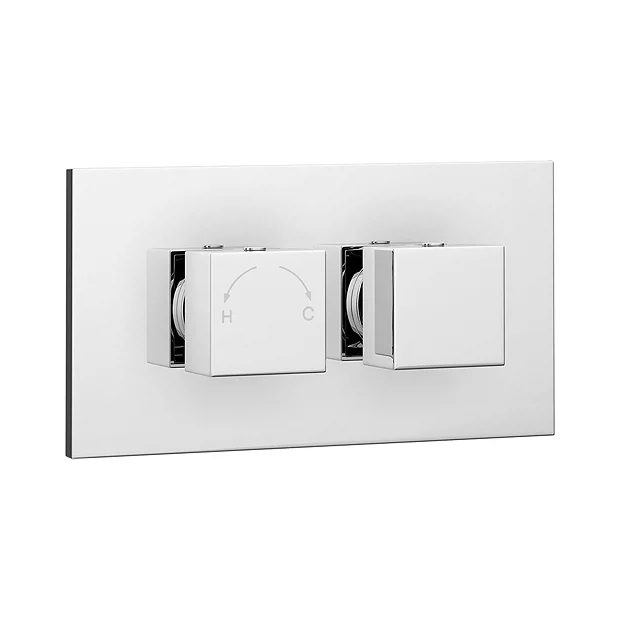

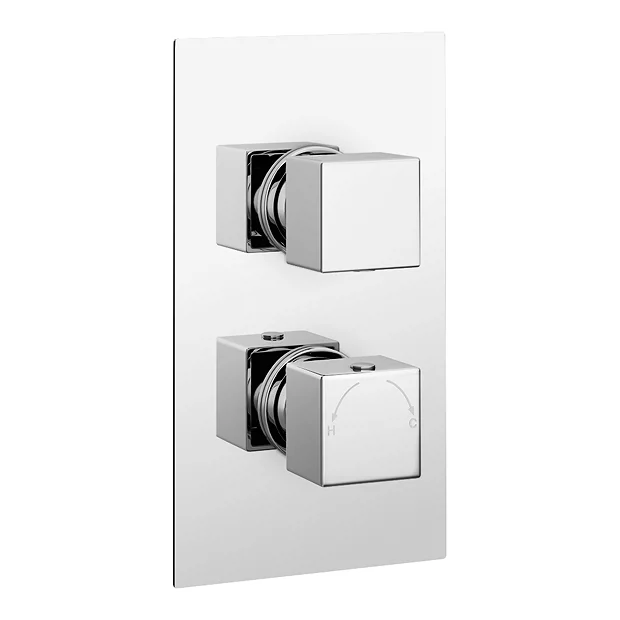

Concealed Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Shower handset sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a good booster pump is installed.
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

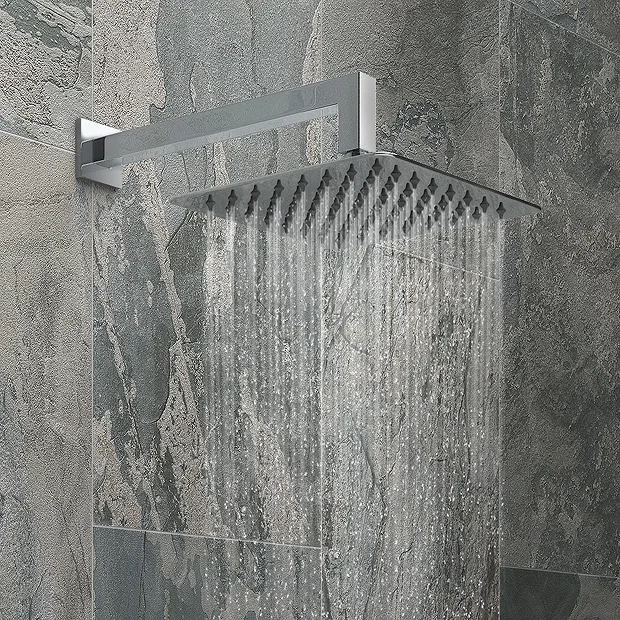

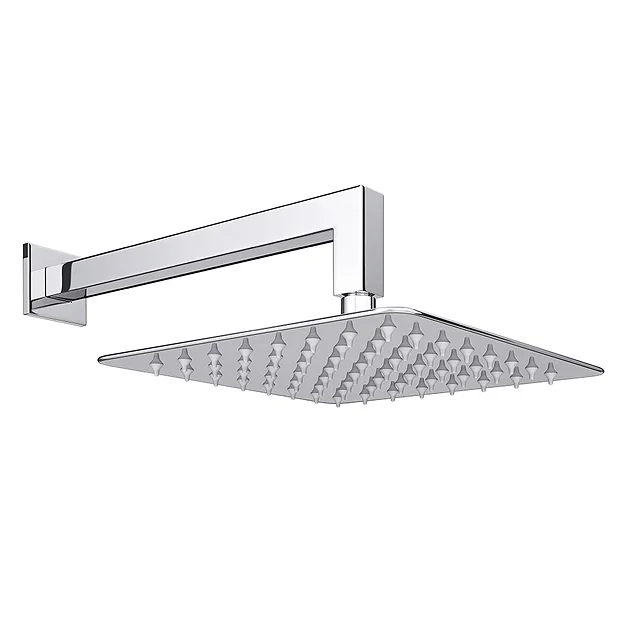

Shower Head + Arm Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 393mm
• Wall mounted
• 90-degree Bend
• Type: Rainfall
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain
• Guarantee: 5 Year

End Panel, taps + waste not included

All measurements are approximate

Tap holes have to be drilled by customer

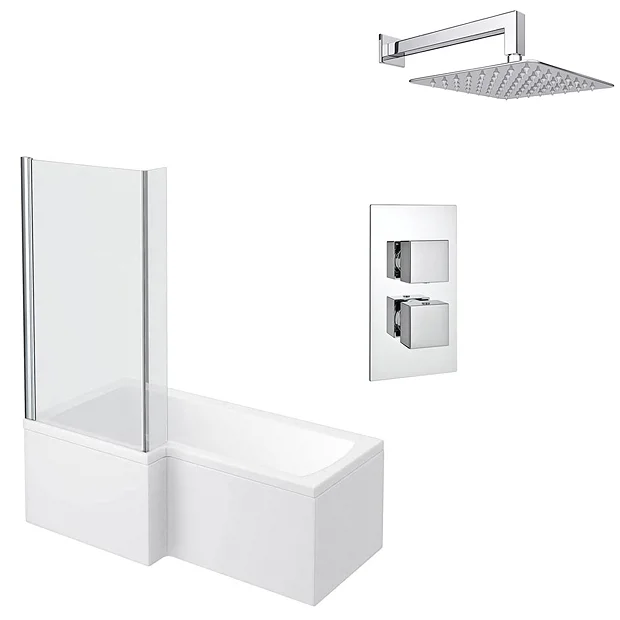

Comprises

(1) 1700mm L-Shaped Square Shower Bath
(1) 1700mm L-Shaped Acrylic Front Panel
(1) 6mm Hinged Bath Screen
(1) Milan Twin Modern Square Concealed Shower Valve – Chrome
(1) Milan Square Wall Mounted 90 Degree Bend Shower Arm 393mm – Chrome
(1) Milan Ultra Thin Square Shower Head with Swivel Joint (200 x 200mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
