Milan Bathroom Milan Square Concealed Individual Stop Tap + Thermostatic Control Valve With 300mm Shower Head

Milan Square Concealed Individual Stop Tap + Thermostatic Control Valve with 300x300mm Shower Head

The Milan Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a striking modern square design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a 300x300mm wall mounted fixed shower head.

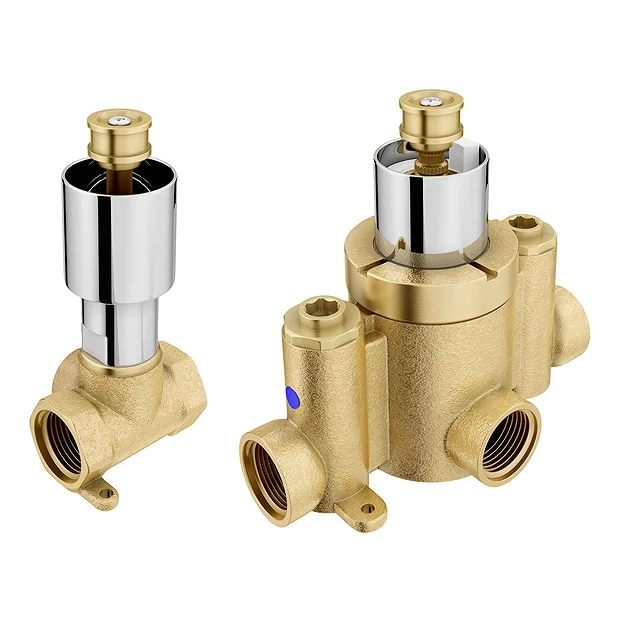

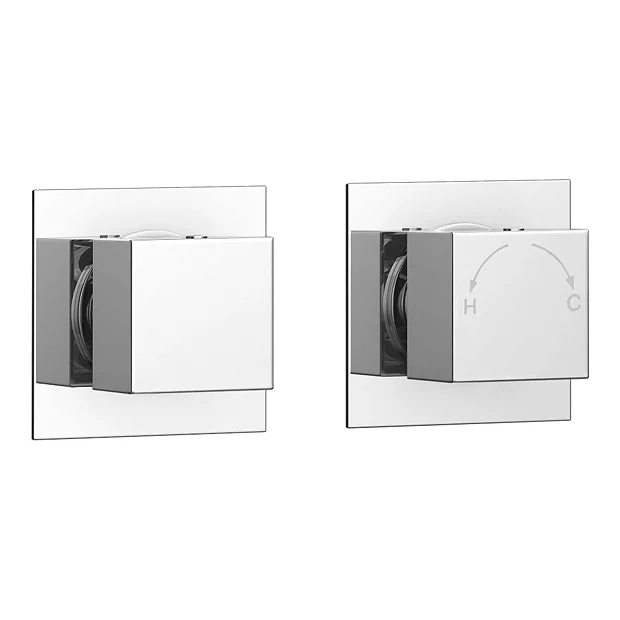

The Milan concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary chrome plated square backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e a main shower head.

Shower Valve Details

• Stop Tap: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: W70 x H70mm
• Style: Modern
• Range: Milan
• Valve Handles: Square
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Square backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

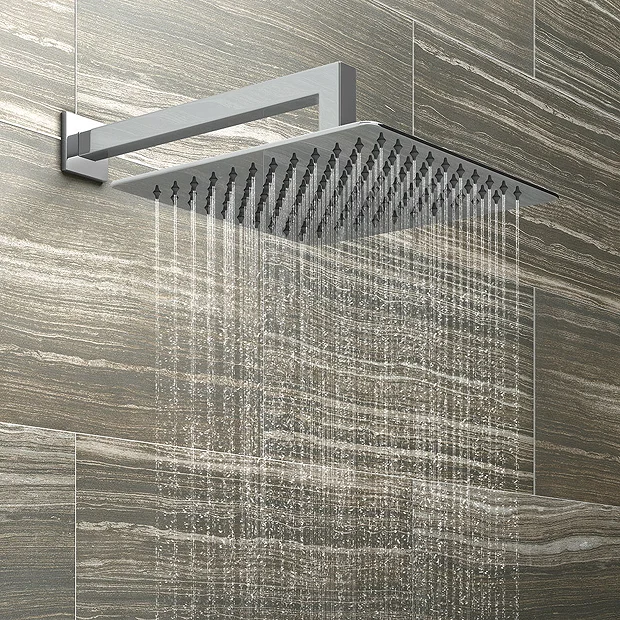

Shower Head Details

• Head Size: 300 x 300mm
• Arm Length: 393mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel Head
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend Wall Mounted
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain
• Shower head chrome plated plastic, not metal

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Milan Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 1 Outlet
(1) Milan 300 x 300mm Ultra Thin Square Shower Head
(1) 90 Degree Bend Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
