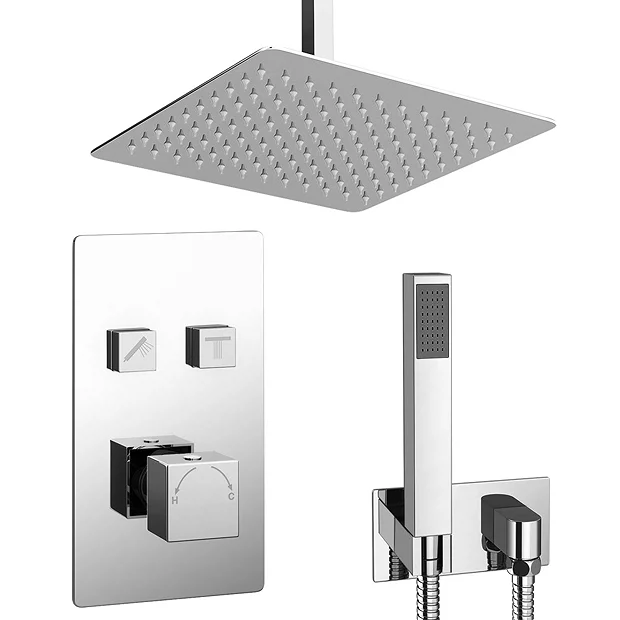

Milan Bathroom Milan Square Push-Button Ceiling Mounted Shower Pack (with Handset + Rainfall Shower Head)

Milan Square Push-Button Shower Pack with 2 Outlets (Wall Mounted Handset + Ceiling Mounted Rainfall Shower Head)

This Milan concealed push-button operated thermostatic valve pack with 2 outlets will compliment any modern bathroom suite, the square handle controls temperature whilst the on/off push-buttons provides instant start/stop activation. Operates two shower accessories.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Select push button On/Off control for 2 outlets.
• Buttons provided: hand shower and overhead shower
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Easy to use
• Rectangular Faceplate
• For use with 2 Outlets
• Bottom knob controls temperature.
• Instant start/stop activation.
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 3.5 L/M
• 1 bar – 9 L/M
• 2 bar – 15 L/M
• 3 bar – 18.5 L/M
• 4 bar – 21.5 L/M
• 5 bar – 24 L/M

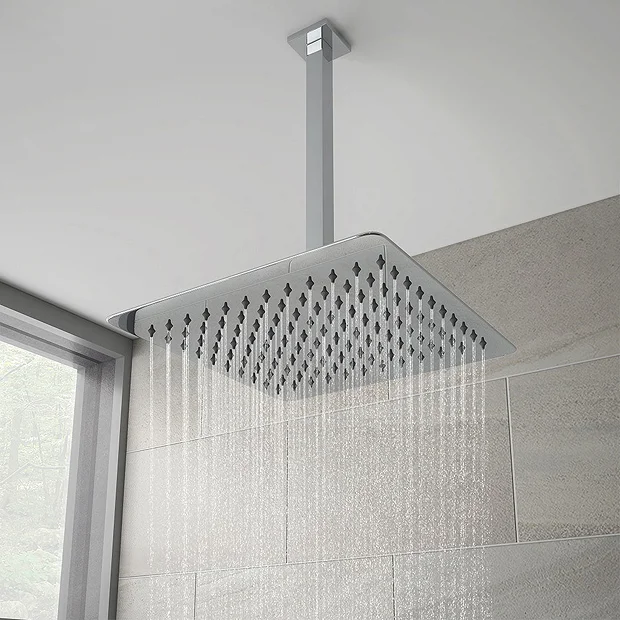

Shower Head Details

• Type: Ceiling Mounted
• Shape: Square
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Size: 300x300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint
• Shower arm length: 300mm

Milan Concealed Wall Outlet Elbow with Shower Handset Details

• Width: 150mm
• Depth: 66mm
• Contemporary shower styling
• Manufactured To The Highest Standards
• Rust resistant hose
• Highly polished finish
• Rectangular handset
• 1.5m Shower flex –  Brass / Chrome plated
• Rectangular Face-plate – Brass / Chrome plated
• Concealed Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Suitable for all plumbing systems

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Picture for illustrative purposes only

All measurements are approximate

Comprises

(1) Milan Twin Modern Round Push-Button Shower Valve with 2 Outlets
(1) Milan Concealed Wall Outlet Elbow with Shower Handset
(1) Milan Ultra Thin Round Shower Head – 300x300mm
(1) Ceiling Mounted Shower Arm – 300mm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
