Milan Bathroom Milan Square Triple Shower Package With Diverter Valve, Head, 4 Body Jets + Slider

Milan Square Triple Shower Valve with Diverter, Fixed Head, 4 Body Jets & Slider and Elbow

The Milan range brings substantial elegance to the modern bathroom. The triple valve enables you to select body jets or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head &  body jets or slide rail kit & body jets with option to divert to a third option.

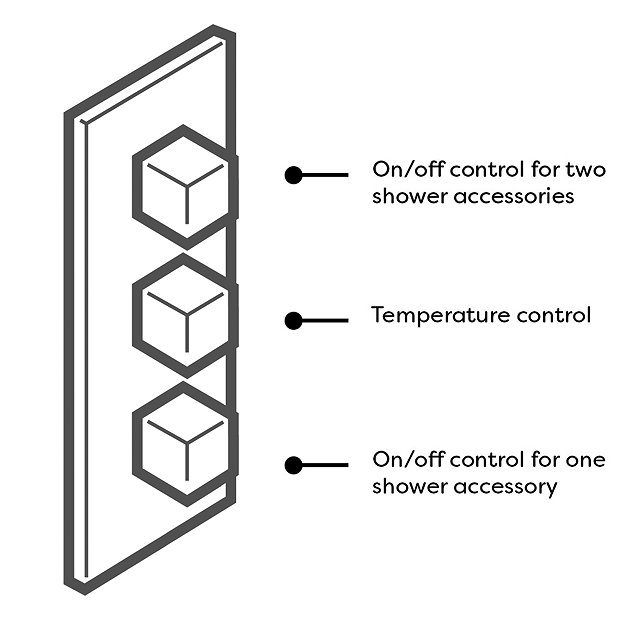

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles – Square
• Rectangular Faceplate
• Style: Modern
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

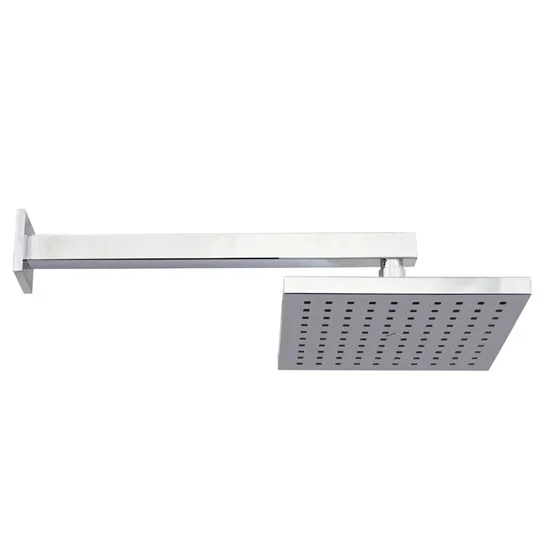

Fixed Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

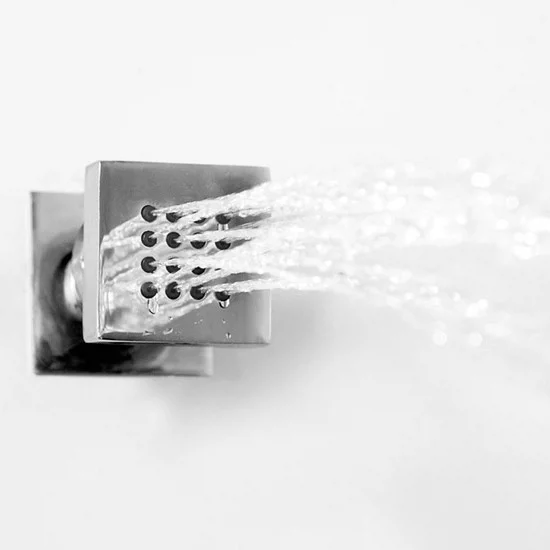

Minimalist Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure: 2.0 bar pressure minimum

Rectangular Slide Rail Kit Details

• High Quality Design
• Colour/Finish: Polished Chrome
• Height: 660mm
• We recommend a minimum pressure of 0.1 bar for best performance
• Includes square outlet elbow
• Certain parts are chrome plated plastic, not metal

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Pictures for illustrative purposes only.

All measurements are approximate

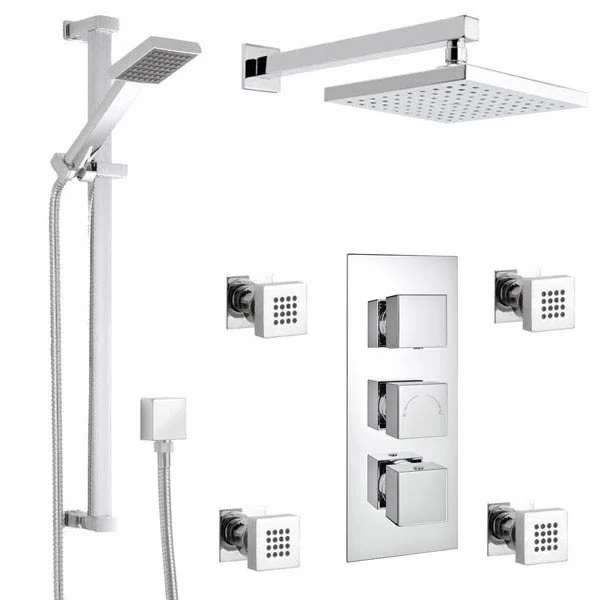

Comprises

(1) 200 x 200mm Square Head – Chrome
(1) Square Shower Arm – Chrome
(1) Triple Concealed Thermostatic Shower Valve with Diverter – Chrome
(1) Rectangular Slide Rail Kit- Chrome
(4) Minimalist Square Body Jet
(1) Square Elbow for Concealed Showers – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
