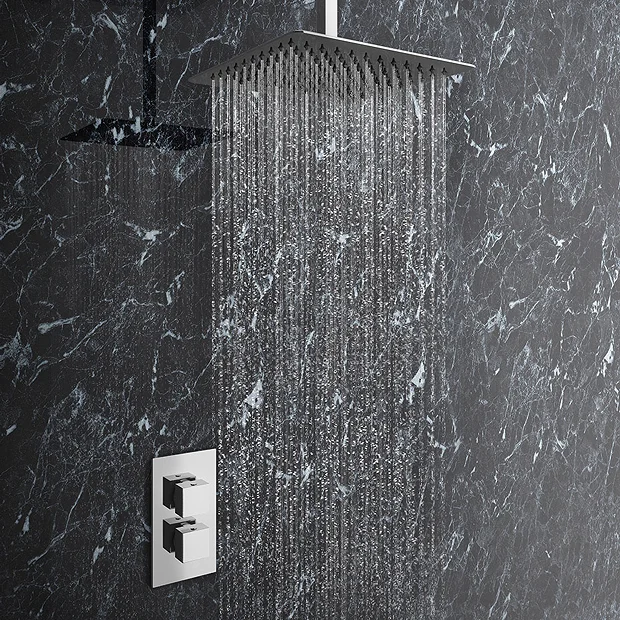

Milan Bathroom Milan Twin Concealed Shower Valve Inc. Ultra Thin 300 X 300mm Head + Vertical Arm

Milan Twin Concealed Shower Valve inc. Ultra Thin 300 x 300 Square Head + Vertical Arm

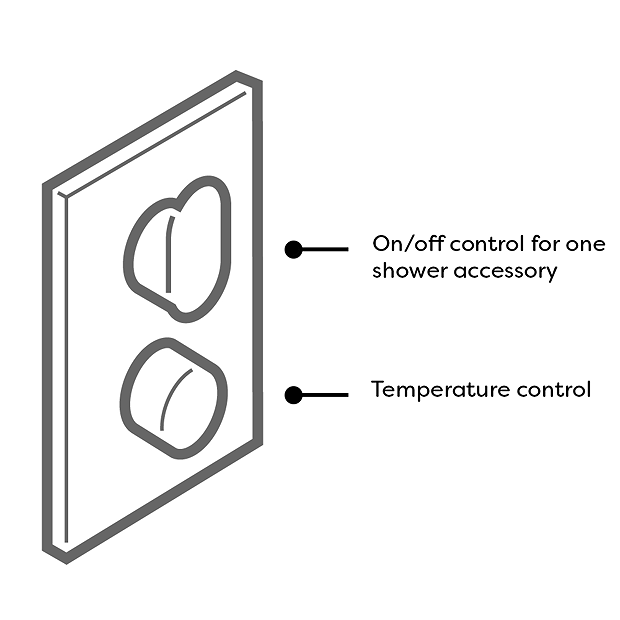

This Milan Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a ultra thin square shower head with arm, it’s minimalist design looks great in any setting. Our range of Showers are ideal for renewing the style of your bathroom affordably.

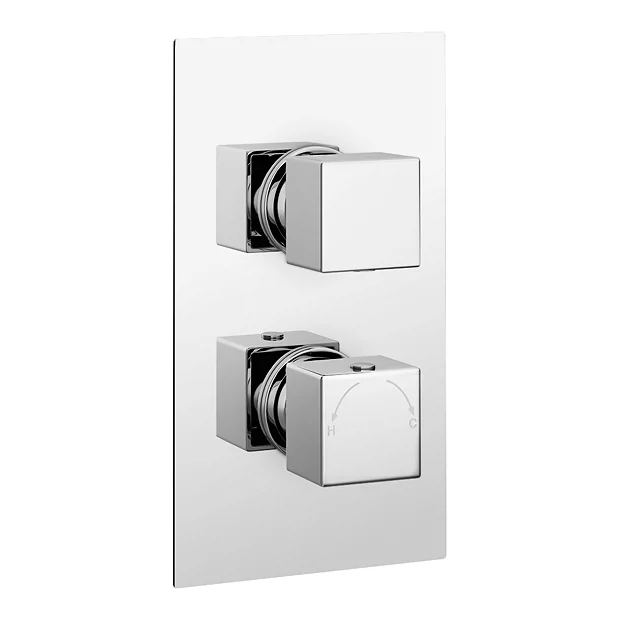

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square

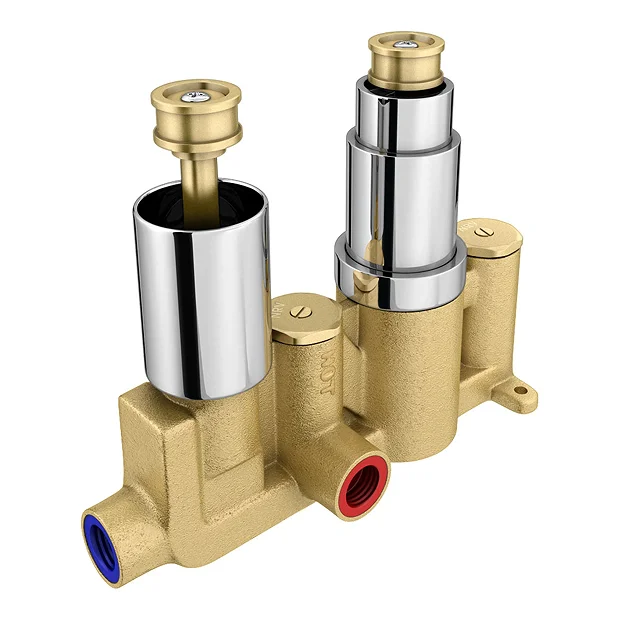

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet

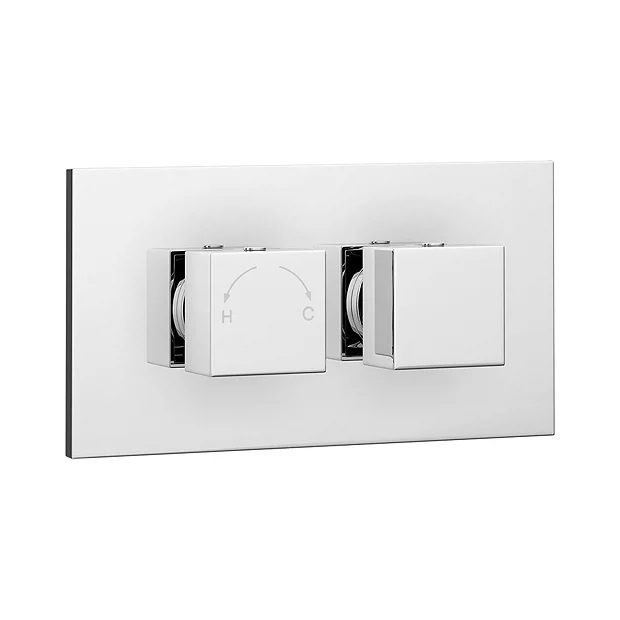

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

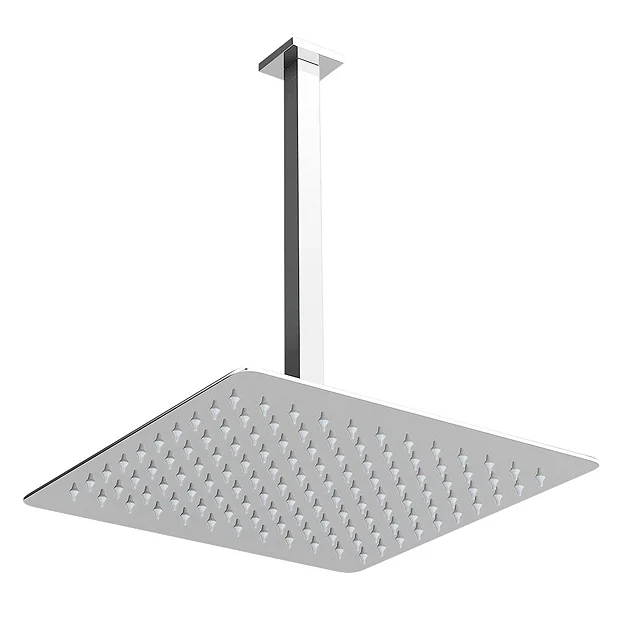

Shower Head Details

• Width: 300mm
• Depth: 300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint

Shower Arm Details

• Shower arm length: 300mm
• Type: Ceiling Shower Arm
• StylevModern
• Shape: Square
• Colour/Finish: Polished Chrome
• Vertical mounted

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
