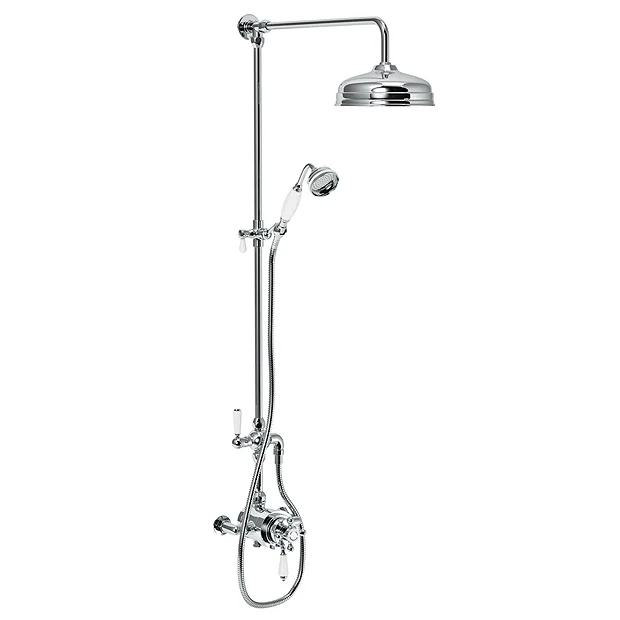

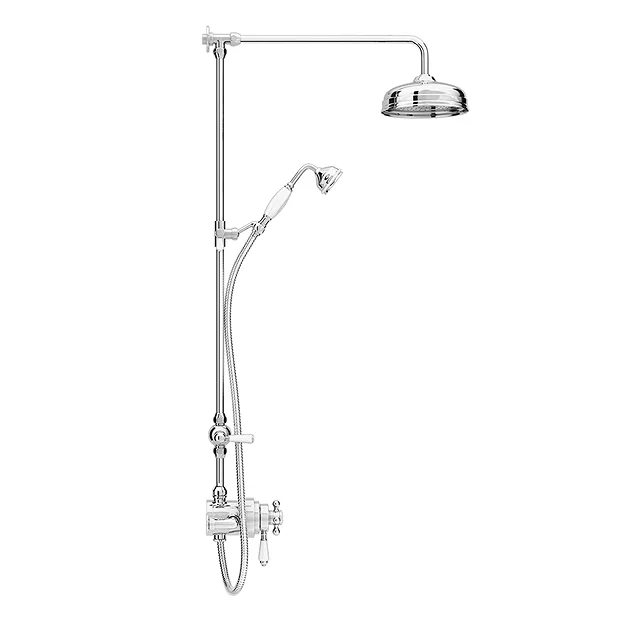

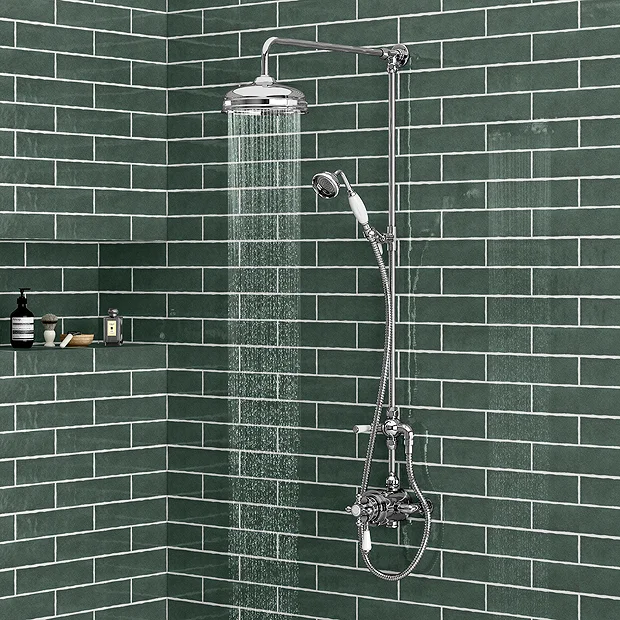

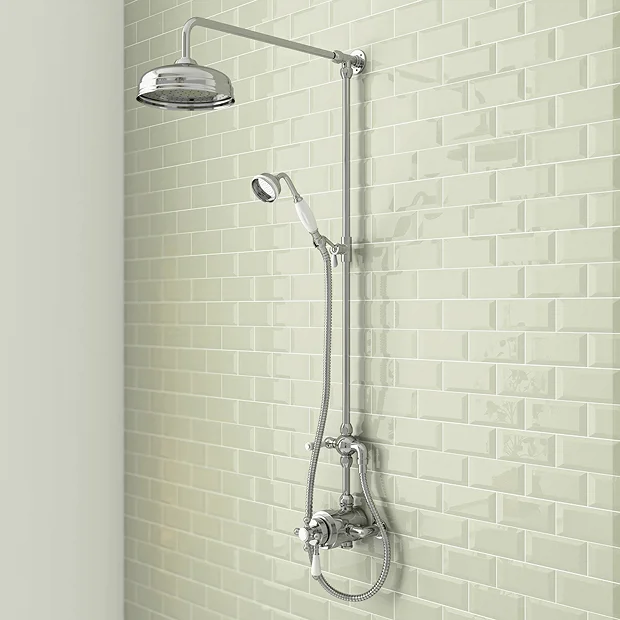

Trafalgar Victorian Exposed Valve Inc. Rigid Riser Kit, Diverter, 8″ Rose + Handset

Trafalgar Victorian Exposed Valve inc. Rigid Riser Kit, Diverter, 8″ Shower Rose + Handset

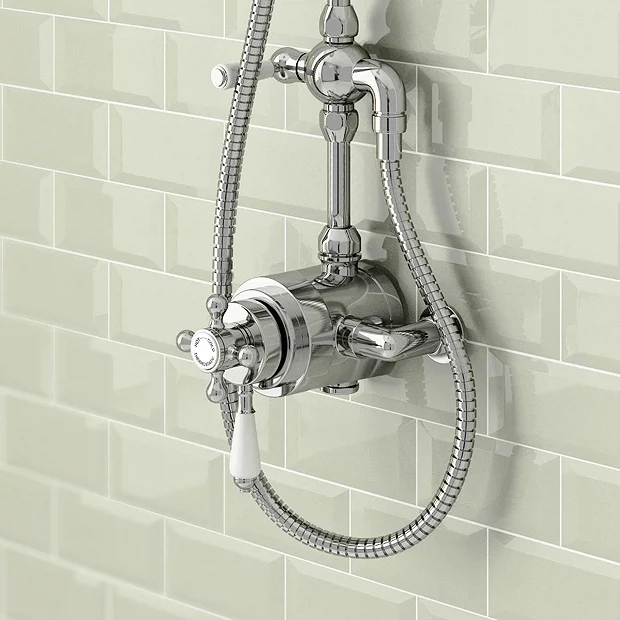

The Trafalgar Victorian Exposed Valve Rigid Riser Kit is the perfect companion to traditional mixer showers. There are two easy to operate controls – one for adjusting the stream and the other to help you achieve the right temperature. It also has a built in anti-scald device, just in case the cold water fails. Its handy slide rail kit allows you to position the 8″ shower rose to the angle you need, while its solid brass and chrome construction delivers on sturdiness and style.

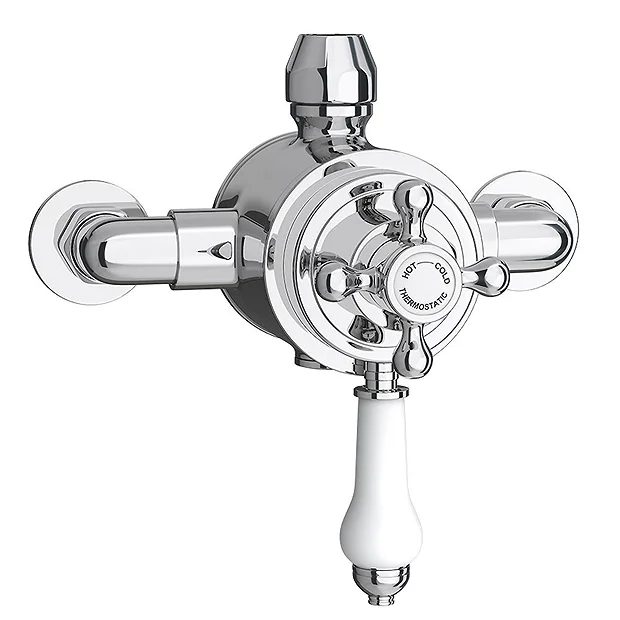

Shower Valve Details

• Projection: 153mm
• Height: 178mm
• Type: Dual Exposed Shower Valve
• Colour/Finish: White/Chrome
• Manufactured from solid brass
• Smooth Operation with Quality Components
• Water Pressure: MP – 0.5 bar pressure minimum
• Standards EN200 and/or WRc/NSF
• Anti-scald technology
• Classic body with traditional lever and cross head handles
• 150mm between H & C pipe inlet centres
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.

• Diverter allows use of one outlet only
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14 L/M
• 2 bar – 20 L/M
• 3 bar – 24.7 L/M
• 4 bar – 28.6 L/M
• 5 bar – 32 L/M
• Valve can be fixed to the wall with the inlets exposed and facing upwards allowing the installation of exposed hot & cold pipework


Slide Rail Kit Details

• Traditional Design
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Slide Rail Kit & Shower
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• Adjustable Handset Position
• 1.5m hose

All measurements are approximate

Product images are for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Traditional Shower Slide Rail Kit – Chrome
(1) Traditional Dual Exposed Thermostatic Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
