Victorian Plumbing Belmont Traditional Shower Package – Concealed Valve With Fixed Head & Slider Kit

Belmont Traditional Shower Package – Concealed Valve with Fixed Head & Slider Kit

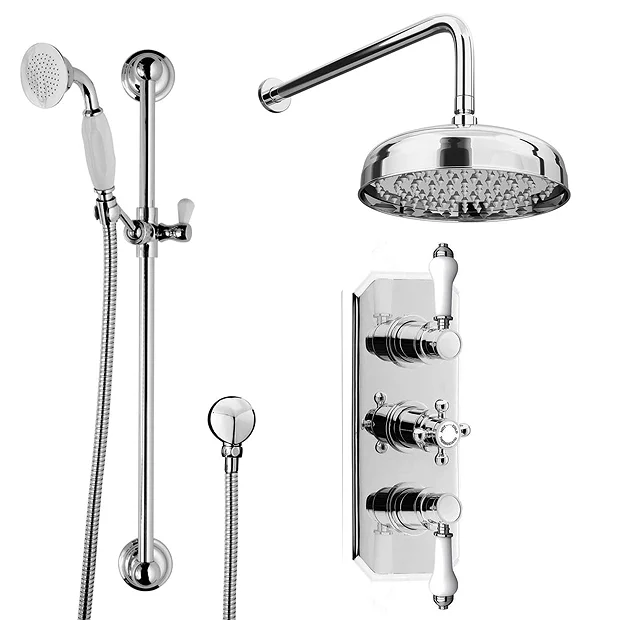

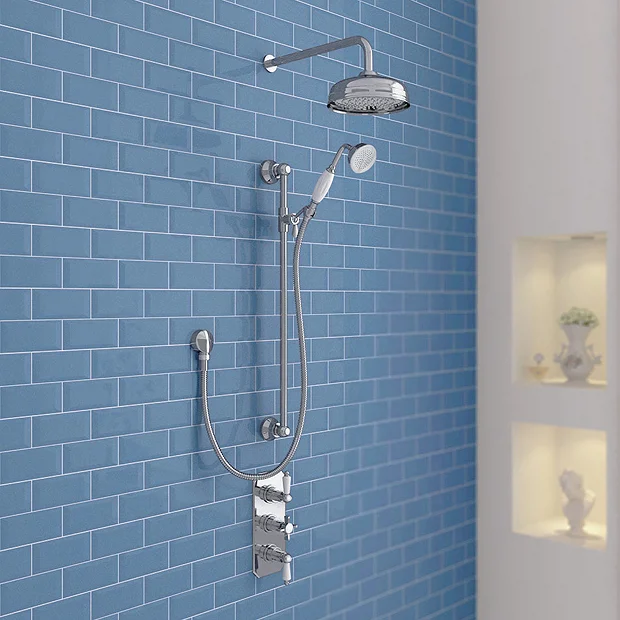

The stylish traditional Belmont shower package, includes a triple concealed thermostatic shower valve, a 200mm fixed shower head with wall mounted arm and a quality slider rail kit. Bring substantial elegance to your bathroom.

The Belmont shower package offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously.

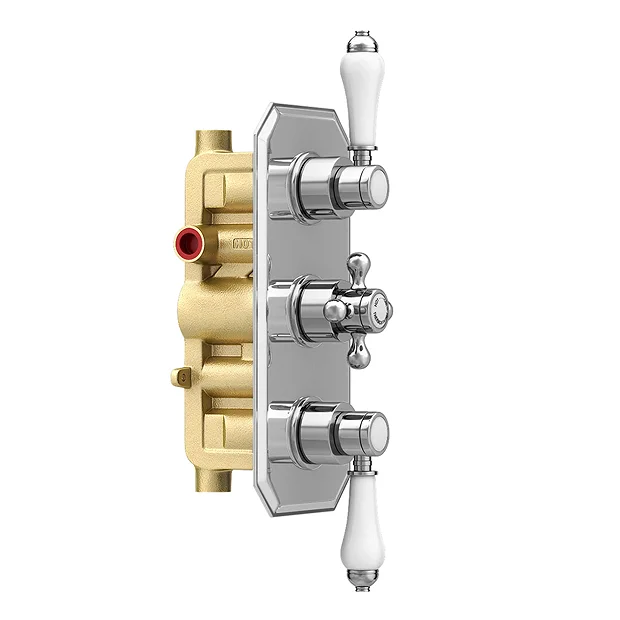

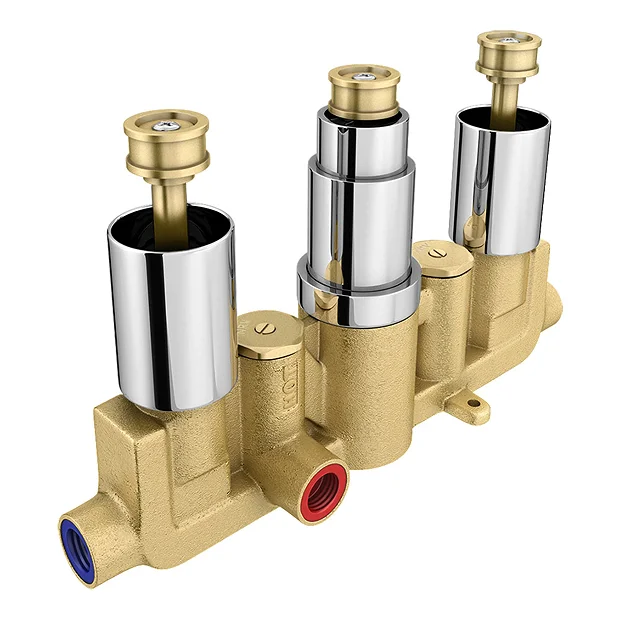

Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Shower Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar

• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

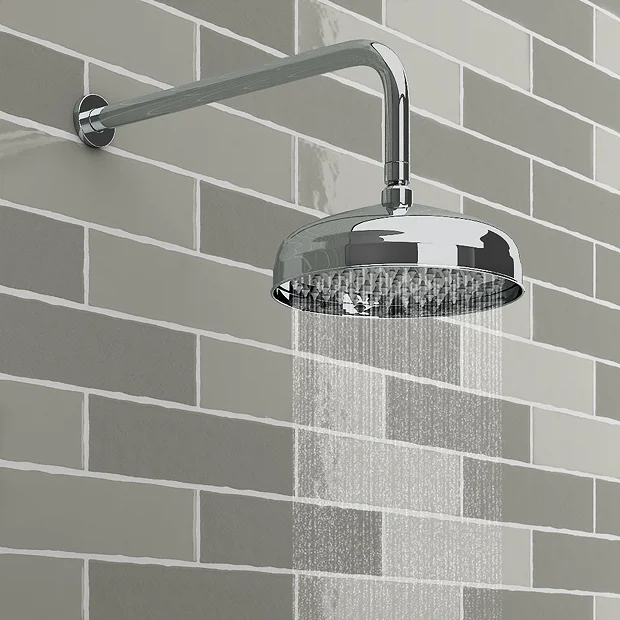

Shower Head Details

• Size: diameter 200mm, height 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Installation of the arm requires rear access behind the wall.


Traditional Slide Rail Kit Details

• Height: 647mm
• Colour/Finish: Chrome Plated
• Style: Traditional
• Rust resistant hose
• Single function shower handset
• Comprises of a shower handset, 1.5m shower flex and slider rail
• Supplied with chrome effect outlet elbow

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Round Elbow for Concealed Showers – Chrome
(1) Belmont Traditional 8″ Apron Rose Shower Head with Arm
(1) Belmont Traditional shower handset, 1.5m shower flex and slider rail

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
