Victorian Plumbing Modern Square Triple Valve With Diverter, Thin Fixed Shower Head, 4 Body Jets + Handset

Modern Square Triple Valve with Diverter, Ultra Thin Fixed Shower Head, 4 Square Body Jets + Shower Handset with Integrated Outlet Elbow and Parking Bracket

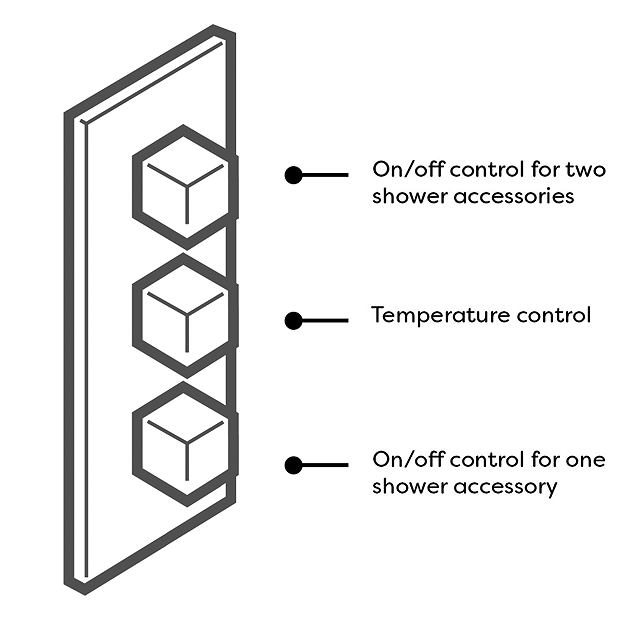

The modern square 3 outlet shower package brings substantial elegance to the modern bathroom. The triple valve enables you to select body jets, fixed shower head or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head &  body jets or slide rail kit & body jets with option to divert to a third option.

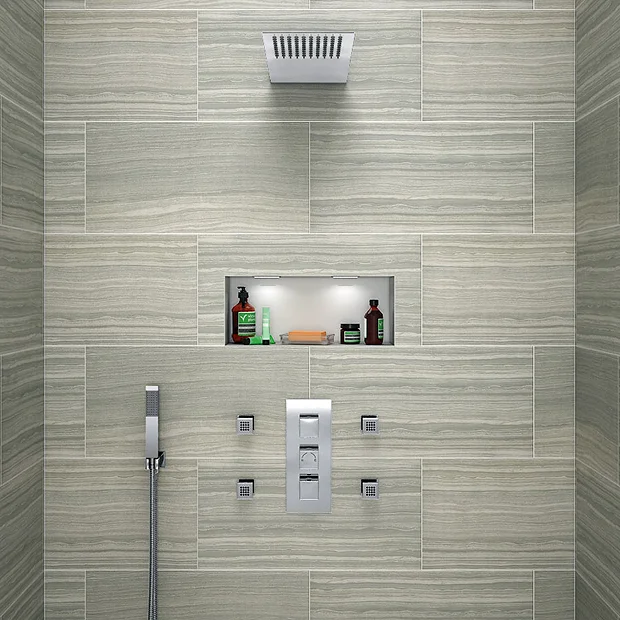

At the top end of luxury, the Modern square 3 outlet shower package gives you an invigorating shower without equal. It features everything you would want in a shower and more, with a shower head, handset, 4 body jets and a thermostatic shower valve to suit. This incredible package is perfect for the modern bathroom, looking to add a touch of style and sophistication. The stunning design can complement any contemporary style bathroom and each item has been built to the highest standards of today’s manufacturing capabilities.

Shower Valve Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

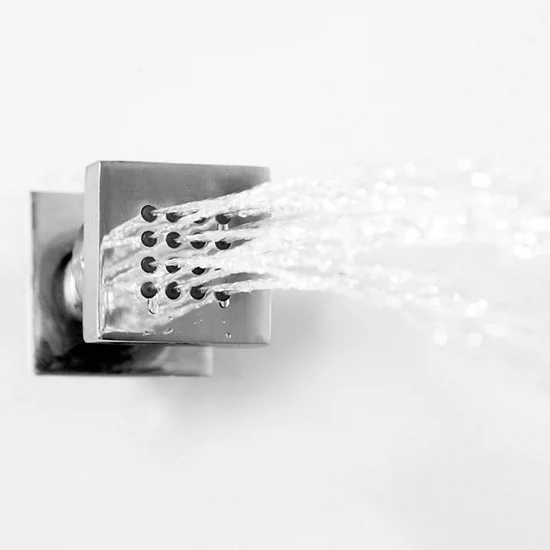

Minimalist Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure – 2.0 bar pressure minimum
• Square Design
• 16 jet nozzles

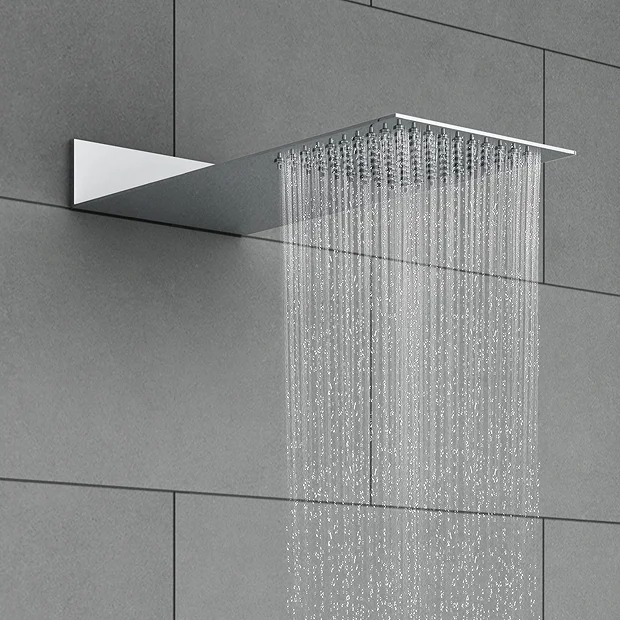

Ultra Thin Fixed Shower Head Details

• Fixed Shower Head
• Sleek & Minimalist Design
• Colour/Finish – Polished Chrome
• Brass Internals
• Wall Mounted
• Minimum operating pressure of 0.5 bar is required for best performance.
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• Easy to install

Square Outlet Elbow w/ Parking Bracket, Flex & Handset Details

• Single function hand shower with integrated outlet elbow and parking bracket.
• Manufactured To The Highest Standard
• Square Handset with Built in Outlet
• Colour/Finish: Polished Chrome
• Material: Brass / ABS plastic

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

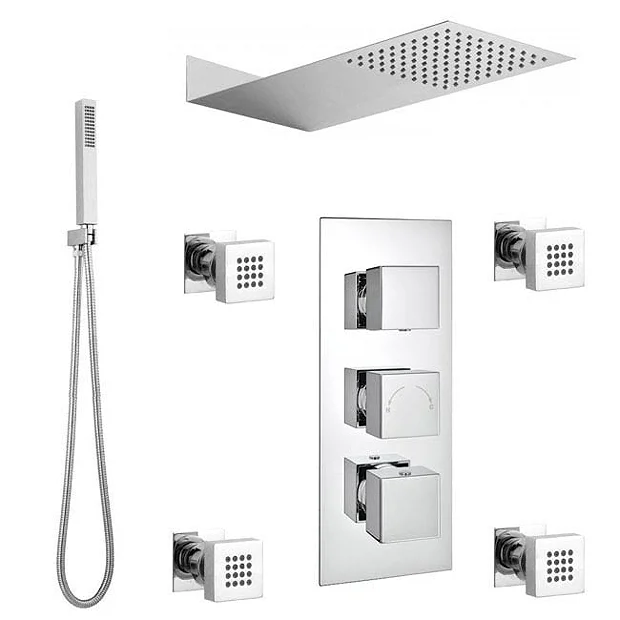

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) Ultra Thin Fixed Shower Head
(4) Square Body Jets
(1) Square Shower Kit with Integrated Outlet Elbow and Parking Bracket

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
