Victorian Plumbing Modern Triple Outlet Shower Pack With Head, 4 Body Jets + Slider Rail

Modern Square Triple Valve with Diverter, Fixed Square Shower Head, 4 Square Body Jets + Rectangular Slide Rail Kit

The modern square 3 outlet shower package brings substantial elegance to the modern bathroom. The triple valve enables you to select body jets, fixed shower head or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow.

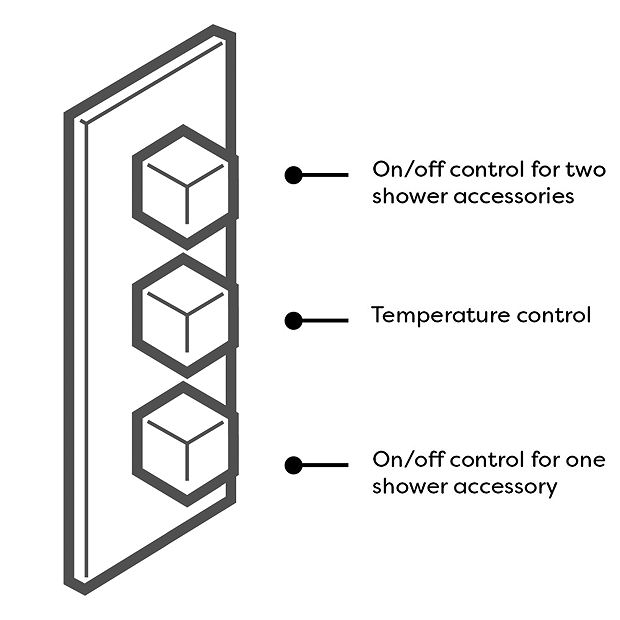

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head &  body jets or slide rail kit & body jets with option to divert to a third option.

At the top end of luxury, the Modern square 3 outlet shower package gives you an invigorating shower without equal. It features everything you would want in a shower and more, with a shower head, handset, 4 body jets and a thermostatic shower valve to suit. This incredible package is perfect for the modern bathroom, looking to add a touch of style and sophistication. The stunning design can complement any contemporary style bathroom and each item has been built to the highest standards of today’s manufacturing capabilities.

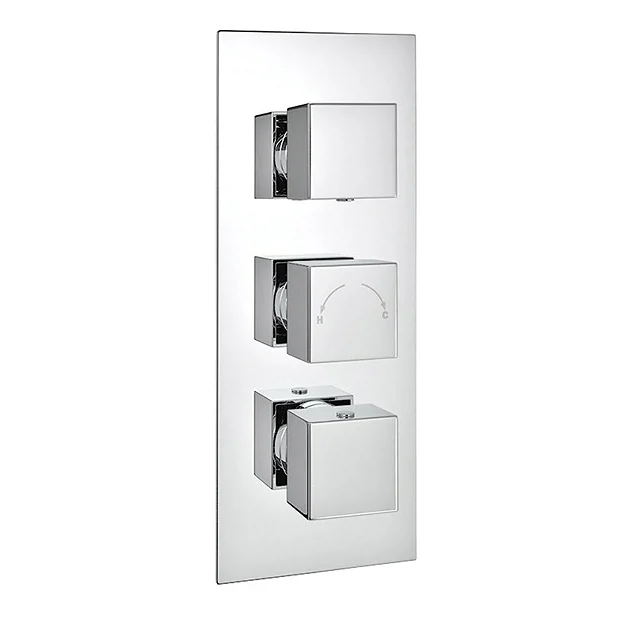

Shower Valve with Diverter Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

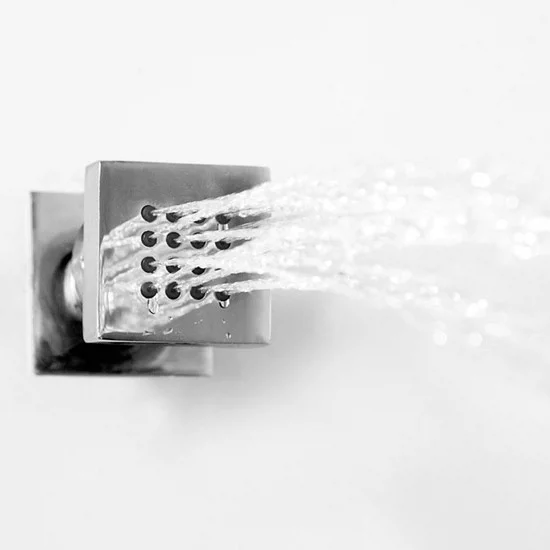

Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure – 2.0 bar pressure minimum

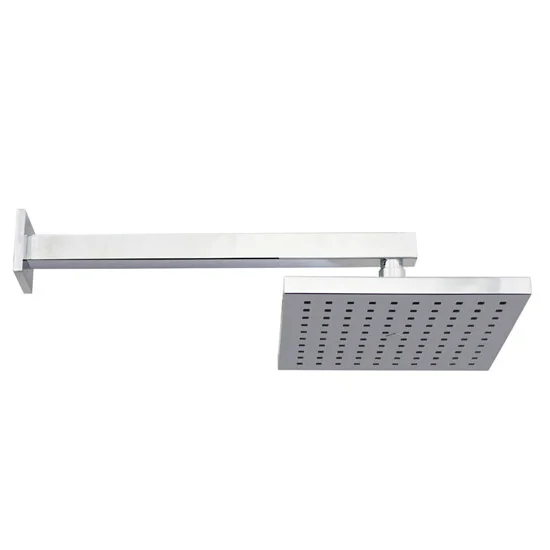

Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

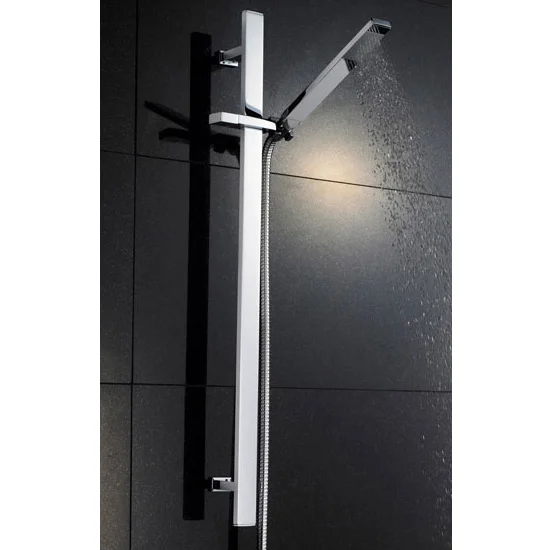

Rectangular Slide Rail Kit Details

• Height: 700mm
• Slider rail: L700 x W30 x D10mm
• Handset: L220 x W30 x D10mm
• Minimalist rectangular slider rail, with a matching slim handset
• High Quality Design
• Colour/Finish: Polished Chrome
• Shower head acrylic chrome plated
• Brass Internals
• We recommend a minimum pressure of 0.1 bar for best performance
• Certain parts are chrome plated plastic, not metal.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

All measurements are approximate

Pictures for illustrative purposes only

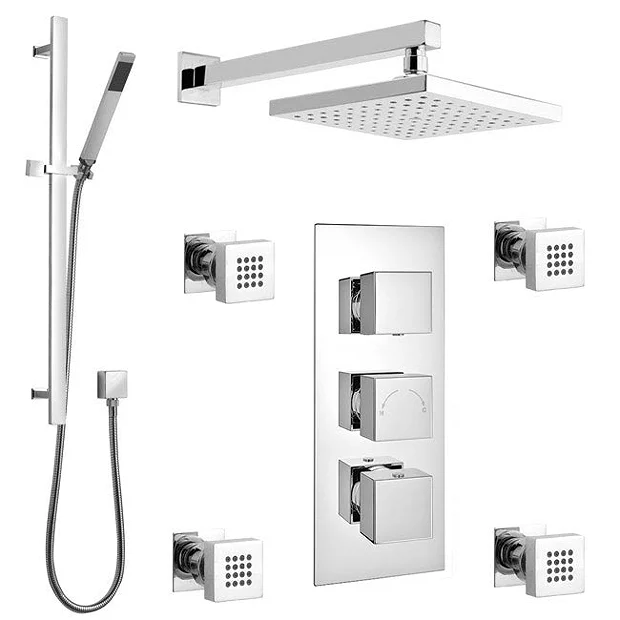

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) 200 x 200mm Fixed Square Shower Head with Wall Mounted Arm
(4) Square Body Jets
(1) Rectangular Slide Rail Kit

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
