Victorian Plumbing Traditional Triple Concealed Shower Valve With Diverter, 8″ Fixed Shower Head, 4 Body Jets & Slider

Traditional triple concealed thermostatic shower valve with diverter, 8″ apron fixed shower head, 4 round body jets & slide rail kit with outlet elbow & handset

Create a classic bathroom statement with the traditional 3 outlet shower package, brings substantial elegance to the bathroom. The triple valve enables you to select body jets, fixed shower head or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head &  body jets or slide rail kit & body jets with option to divert to a third option. A perfect solution for today’s bathroom, providing style and functionality.

Give your bathroom a touch of style and sophistication with the Traditional 3 outlet shower package. It evokes the design of a bygone era yet has been built to the same high standards contemporary manufacturers can provide. The interior is made from brass making the entire body strong and durable to withstand the daily uses of the bathroom and the exterior has been finished in polished chrome for a touch of elegance and beauty.

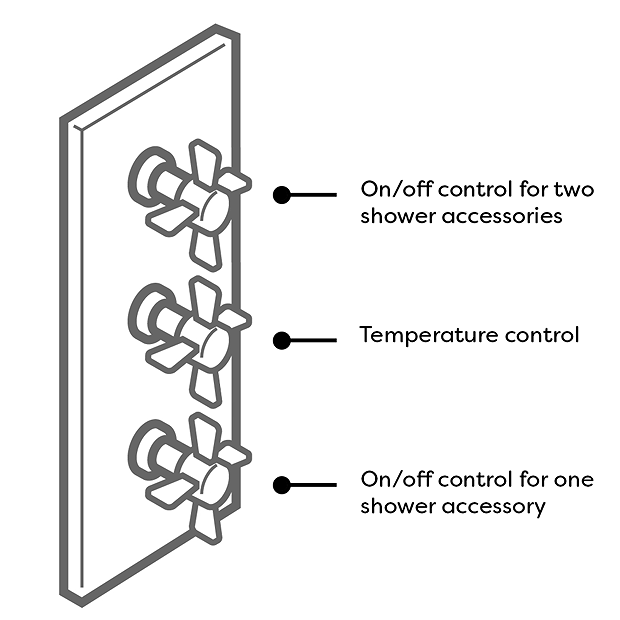

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Colour/Finish – Polished Chrome / Ceramic
• Manufactured from solid brass
• 3 outlet options
• Attractive face plate with crosshead and lever controls.
• Product Type – Thermostatic Shower Valve
• Water Pressure – MP 0.5 bar pressure minimum
• Standards – EN200 and/or WRc/NSF
• Requirement – Suitable for all plumbing systems that will deliver 0.5 bar pressure
• Can be fitted vertically or horizontally

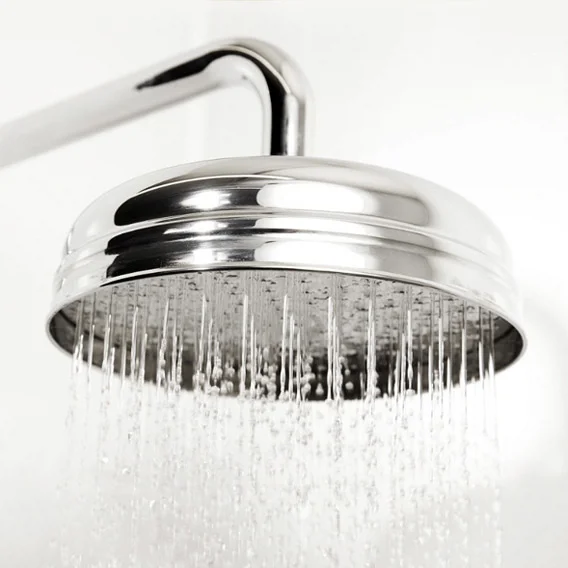

8″ Apron Fixed Shower Head & Arm Details

• Product Code – ARM01-HEAD21
• High Quality Design
• Colour/Finish – Polished Chrome
• Manufactured to the Highest Standards
• Heavyweight Brass Construction
• Smooth Operation with Quality Components
• Fixed head
• Requires a minimum of 0.5 bar pressure

Traditional Shower Slide Rail Kit Details

• Traditional Design
• Product Code – ITY310
• Colour/Finish – Polished Chrome / Ceramic
• Material – Brass Internals
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Standards – EN200 and/or WRc/NSF
• Includes handset, slide rail & outlet elbow

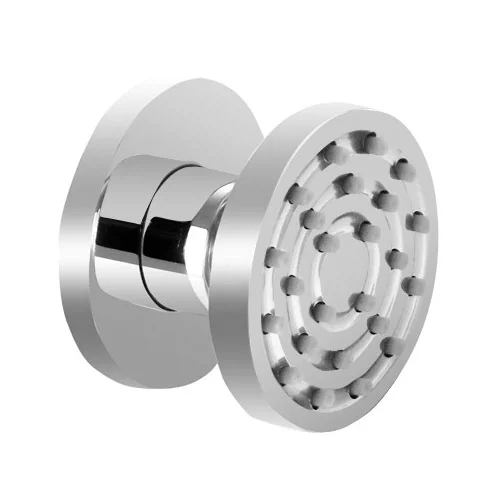

Round Body Jet Details

• Product Type – Round Body Jet
• Overall Size – D60 x W55 x H55mm approx
• Shroud ring – 55mm diameter
• High Quality Design
• Colour/Finish – Polished Chrome
• Material – Brass body
• Brass 1/2 inch BSP thread – 25mm long

• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

All measurements are approximate

Images shown are for illustration purposes only

Guarantee: 5 Year

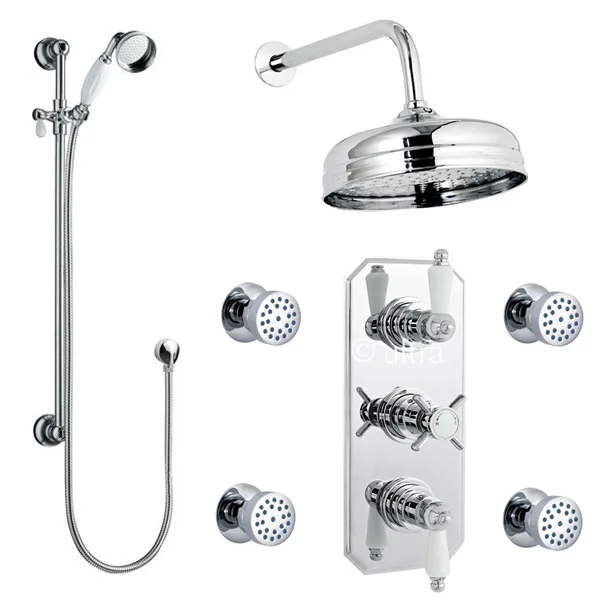

Comprises

(4) Round Body Jet – Chrome
(1) Traditional Slide Rail Kit – Chrome – ITY310
(1) Wall Mounted Fixed Shower Arm – 330mm length – ARM01
(1) 8″ Apron Fixed Shower Head – Chrome – HEAD21
(1) Triple Concealed Thermostatic Shower Valve with Diverter
